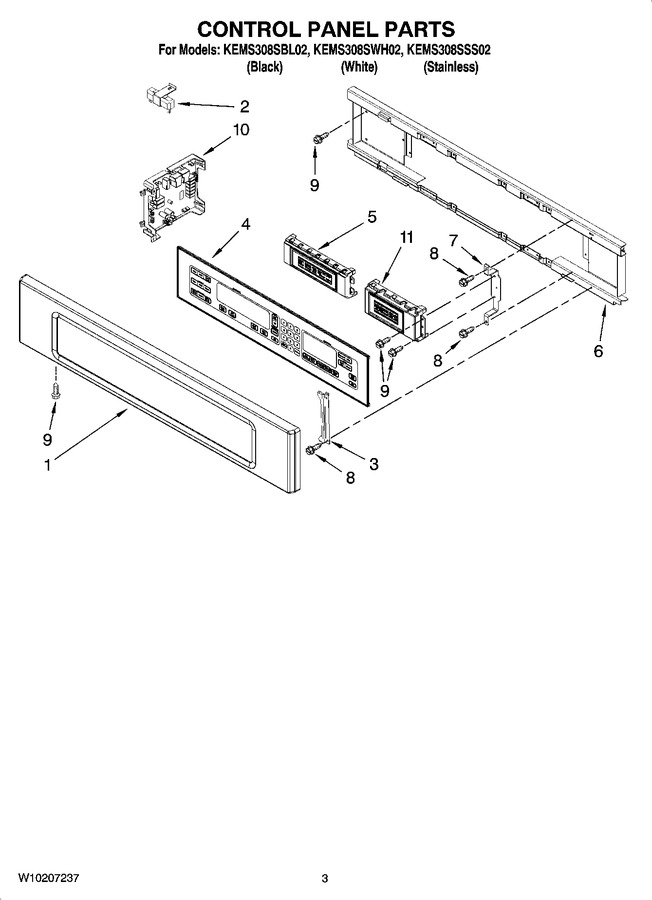

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8303716WH | Panel, Control (white) |
|
$ 116.08 | |||||
| 1 | W10165445 | Panel, Control (stainless) |
|
- | |||||
| 1 | 8303716BL | Panel, Control (black) |
|
$ 120.49 | |||||
| 2 | 8304441 | Resistor, Drop |
|
$ 61.98 | |||||
| 3 | 8303797 | Bracket, Glass Touch |
|
- | |||||
| 4 | 8303882 | Keyboard, Glass Touch |
|
$ 253.13 | |||||
| 5 | W10118734 | User Interface, Oven |
|
- | |||||
| 6 | 8303719 | Backer, Control |
|
$ 41.30 | |||||
| 7 | 8303887 | Bracket,enclosure |
|
$ 7.82 | |||||
| 8 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 9 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 10 | W10119143 | Appliance Manager |
|
$ 373.51 | |||||
| 11 | W10118735 | User Interface, Microwave |
|
- |
