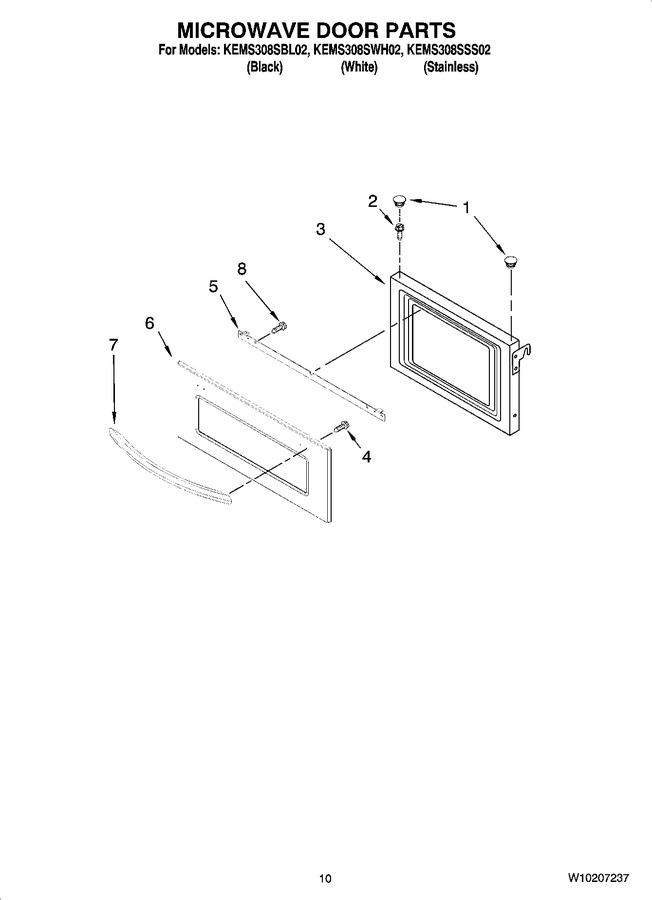

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 10.58 | |||||
| 2 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | W10120487 | Door, Microwave |
|
$ 232.47 | |||||
| 4 | WP4449154 | Screw (4) (Replaces: 4449154) |
|
$ 6.80 | |||||
| 5 | 8303033 | Bracket, Door |
|
$ 39.61 | |||||
| 6 | 8304027 | Glass Assembly (black) |
|
- | |||||
| 6 | 8304028 | Glass Assembly (white) |
|
- | |||||
| 6 | 8304026 | Glass Assembly (stainless) |
|
- | |||||
| 7 | 8303774BL | Handle, Door (black) |
|
- | |||||
| 7 | 8303774WH | Handle, Door (white) |
|
- | |||||
| 7 | 8303774SS | Handle, Door (stainless) |
|
- | |||||
| 8 | WP7101P246-60 | Screw (Replaces: W10143304) |
|
$ 6.98 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 8304440 | Conduit, Combo |
|
$ 108.00 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| W10231531 | Harness, Door Latch (Replaces: W10143473) |
|
$ 128.67 | ||||||
| 8304052 | Harness, Communication |
|
$ 60.81 | ||||||
| 4452400 | Lead, Ground |
|
$ 38.93 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| W10171567 | Harness, Main |
|
- |
