SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Control Frame And Knob


04 - Control Compartment


05 - Unit


06 - Latch


07 - Oven Door


08 - Oven Cabinet


09 - Microwave Door


10 - Microwave Cabinet


11 - Microwave Oven


12 - Wiring Harness


13 - Microwave Control Panel

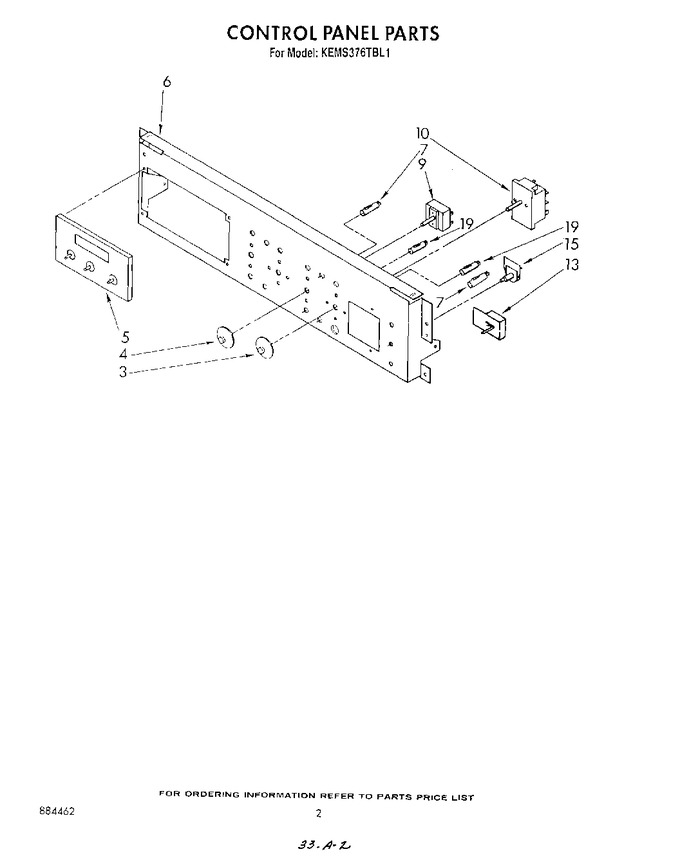

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3178475		Thermostat Disc		Appelez-nous	-
4	3178263		Selector Disc (2)		Appelez-nous	-
4	4175379		Nut, Tinnerman (2)		Appelez-nous	-
5	4159470		Screw, Drive		Appelez-nous	-
5	4164360		Nut, Washer Type (4)		Appelez-nous	-
5	4173071		Electronic Timer		Appelez-nous	-
5	4168838		Nut, Tinnerman (2)		Appelez-nous	-
6	4164218		Bracket, Control		Appelez-nous	-
7	4168597		Indicator, Light (2) (oven And Power On)		Appelez-nous	-
9	155023		Screw 8-32 X 1/4			Immediately	$ 7.91
9	3177174		Switch, Selector		Appelez-nous	-
10	155023		Screw 8-32 X 1/4			Immediately	$ 7.91
10	4164362		Thermostat		Appelez-nous	-
13	4163730		Meat Probe Indicator		Appelez-nous	-
13	4159465		Screw, (2)		Appelez-nous	-
15	254225		Screw,		Appelez-nous	-
15	4167332		Switch, Oven Light		Appelez-nous	-
19	4163869		Indicator, Light (2) (clean And Lock)		Appelez-nous	-
	LIT3177139		Installation Instructions Use & Care Guide		Appelez-nous	-
	LIT3147577		Label, Cooking		Appelez-nous	-
	LIT3147571		Label, Defrost		Appelez-nous	-
	LIT884462		Repair Parts List		Appelez-nous	-
	LIT4174872		Installation Instructions (microwave)		Appelez-nous	-
	LIT4174870		Cookbook (microwave)		Appelez-nous	-
	LIT3177066		Main Oven		Appelez-nous	-
	LIT4174868		Microwave		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
