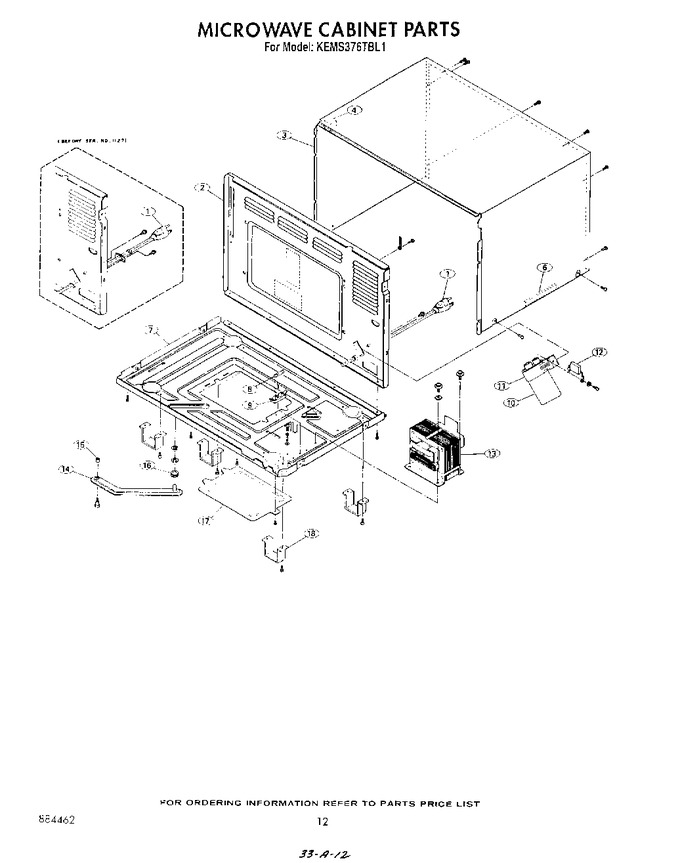

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4164605		Washer, Grounding (power Cord)		Appelez-nous	-
1	4164565		Screw, Bushing Holder (before Serial Number 1127)		Appelez-nous	-
1	4164547		Screw, Grounding (power Cord)		Appelez-nous	-
1	4164504		Power Cord		Appelez-nous	-
2	4164528		Cabinet Back		Appelez-nous	-
3	4164549		Screws, Cabinet Back, Top And Sides (28)		Appelez-nous	-
3	4164529		Cabinet Top & Sides		Appelez-nous	-
4	4164530		Seal, Cabinet Side		Appelez-nous	-
6	4164531		Seal, Cabinet Lower Side		Appelez-nous	-
7	4164527		Base, Cabinet		Appelez-nous	-
8	4164510		Fuse, Monitor		Appelez-nous	-
9	4164511		Holder, Fuse		Appelez-nous	-
10	4164505		Capacitor		Appelez-nous	-
11	4164506		Capacitor Strap		Appelez-nous	-
11	4164567		Screw, Capacitor Strap Mounting		Appelez-nous	-
12	4164507		Diode		Appelez-nous	-
12	4164558		Screw, Diode Mounting		Appelez-nous	-
12	4164559		Washer, Diode Mounting		Appelez-nous	-
13	4164572		Screw, Transformer Mounting (2)		Appelez-nous	-
13	4164579		Washer, Tranformer Mounting		Appelez-nous	-
13	4164513		Transformer		Appelez-nous	-
14	4164553		Cam, Door		Appelez-nous	-
15	4164566		Screw, Door Cam Mounting		Appelez-nous	-
15	4164588		Spacer, Door Cam		Appelez-nous	-
16	4164554		Roller, Door Cam		Appelez-nous	-
16	4164556		Washer, Door Cam Roller		Appelez-nous	-
16	4164555		E-ring, Door Cam Roller		Appelez-nous	-
17	4164518		Cover, Turn- Table		Appelez-nous	-
17	4164548		Screw, Turn- Table Cover Mounting		Appelez-nous	-
18	4164436		Foot, Cabinet (4)		Appelez-nous	-
18	4164548		Screws, Cabinet Foot (13)		Appelez-nous	-
