SELECT A DIAGRAM

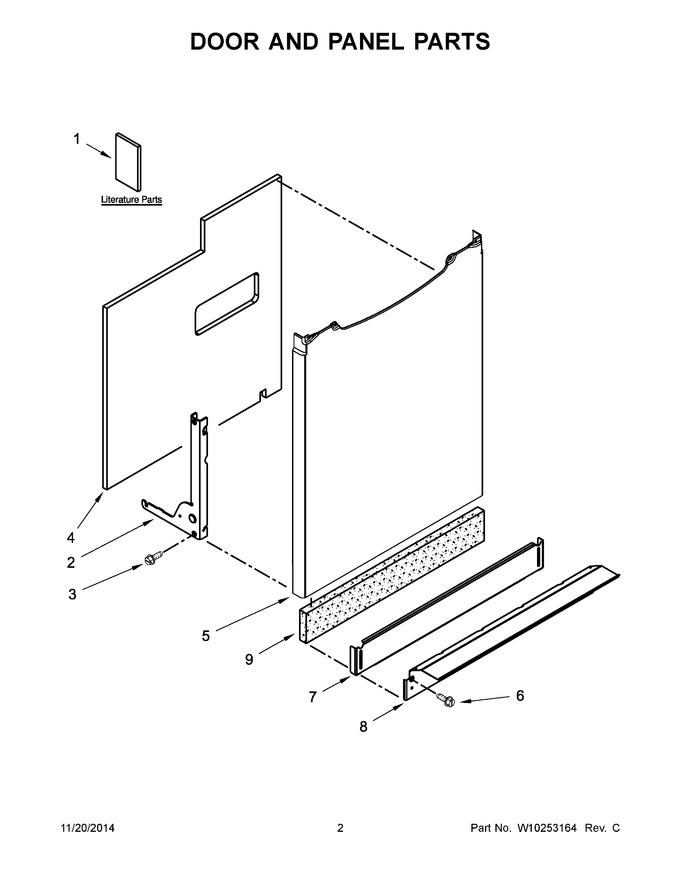

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel Parts


04 - Door And Latch Parts


05 - Lower Washarm Parts


06 - Heater Parts


07 - Fill And Overfill Parts


08 - Tub And Frame Parts


09 - Pump And Motor Parts


10 - Upper And Lower Rack Parts


11 - Upper Wash And Rinse Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158012		Instructions, Installation		Appelez-nous	-
2	WPW10118637		Bracket, Hinge (right)   (Replaces: W10118637)				$ 233.73
3	99001075		Screw				$ 5.81
4	Y99002587		Pad, Foam		Appelez-nous	-
5	W10235722		Panel, Front (black)		Appelez-nous	-
6	WP6-912366		Screw (access Pnl)   (Replaces: 912366)				$ 7.29
7	99002765		Panel, Toe (black)		Appelez-nous	-
8	99002859		Support, Front (black)		Appelez-nous	-
9	WP6-920587		Insulation, Toe Panel   (Replaces: 99002414)				$ 6.35
1A	W10208037		Energy Guide		Appelez-nous	-
1B	W10157791		Guide, Use & Care		Appelez-nous	-
2A	W10118638		Bracket, Hinge (left)				$ 109.77
5A	W10235723		Panel, Front (white)		Appelez-nous	-
5B	W10235724		Panel, Front (biscuit/bisque)		Appelez-nous	-
5C	W10235725		Panel, Front (stainless)		Appelez-nous	-
7A	99002766		Panel, Toe (white)		Appelez-nous	-
7B	99002767		Panel, Toe (biscuit/bisque)		Appelez-nous	-
8A	99002860		Support, Front (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
