Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10119337 Strike, Door Special Order $ 23.34

2 6-916881 Bracket, Cabinet Mounting Special Order $ 5.85

3 99002150 Seal, Air/water Inlet Special Order $ 8.72

4 99002610 Bracket, Spring Adjustment Appelez-nous -
5 6-916979 Bracket, Support Special Order $ 21.88

6 99003688 Nut Special Order $ 5.51

7 W10173920 Bracket, Cable Appelez-nous -
8 99002608 Roller, Cable Bracket Special Order $ 9.46

9 99003687 Bolt, Shoulder Special Order $ 5.33

10 99002598 Spring, Door Special Order $ 5.83

11 WP99003446 Door Cable Assembly   (Replaces: 99003446) In-Stock Immediately $ 7.90

12 WPW10223013 Insulation, Tub   (Replaces: 99002849) Special Order $ 83.60

13 WP99003337 Seal, Door   (Replaces: 99003337) In-Stock Immediately $ 138.53

14 N/P Tub Assembly (not Serviced) Appelez-nous -
15 99002633 Thermostat Limiting Special Order $ 33.69

16 W10167658 Clip, Thermostat Appelez-nous -
17 99002692 Screw, Trim Mounting Special Order $ 5.02

18 99002637 Bracket, Junction (not Serviced) Box Appelez-nous -
19 WPW10143258 Leg, Leveling   (Replaces: W10143258) Special Order $ 13.81

20 W10164700 Strip, Trim Left Appelez-nous -
21 99002638 Cover, Junction Box Appelez-nous -
22 W10117485 Support, Hinge (left) Special Order $ 99.12

23 W10174569 Backer, Hinge Seal (left) Special Order $ 8.51

24 W10164702 Strip, Trim Top Appelez-nous -
25 W10164701 Trim, Side Right Appelez-nous -
26 99003078 Grill, Air/water Inlet Appelez-nous -
27 6-912799 Screwr Appelez-nous -
28 W10163633 Gap Seal, Toe Kick (black) Appelez-nous -
29 W10167660 Bracket, Rear Support Special Order $ 36.18

30 W10167916 Clamp, Rear Support Appelez-nous -
22A W10117484 Support, Hinge (right) Special Order $ 103.72

23A W10174581 Backer, Hinge Seal (right) Special Order $ 10.73

28A W10163635 Gap Seal, Toe Kick (white) Appelez-nous -
28B W10163634 Gap Seal, Toe Kick (biscuit/bisque) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

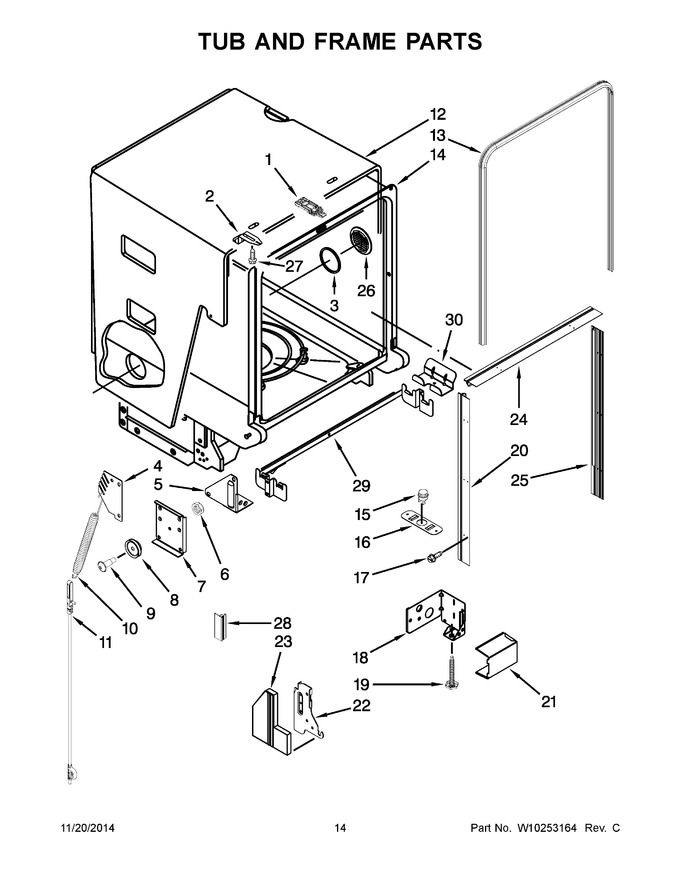

Diagram for MDBH980AWS0
