Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002575 Housing, Board (top) Special Order $ 20.11

2 W10218838 Board, Control Special Order $ 189.28

3 99002576 Housing, Board (bottom) Special Order $ 25.18

4 W10235718 Panel, Control (includes Overlay) (black) Special Order $ 191.60

5 99002751 Switch, Door Special Order $ 23.02

6 WPW10275768 Latch, Assembly   (Replaces: 99003347) In-Stock Immediately $ 79.15

4A W10235719 Panel, Control (includes Overlay) (white) Special Order $ 198.46

4B W10235720 Panel, Control (includes Overlay) (biscuit/bisque) Appelez-nous -
4C WPW10235721 Panel, Control (includes Overlay) (stainless)   (Replaces: W10235721) Special Order $ 382.72


    View Diagram in Separate Window     Print Icon   Print Part List

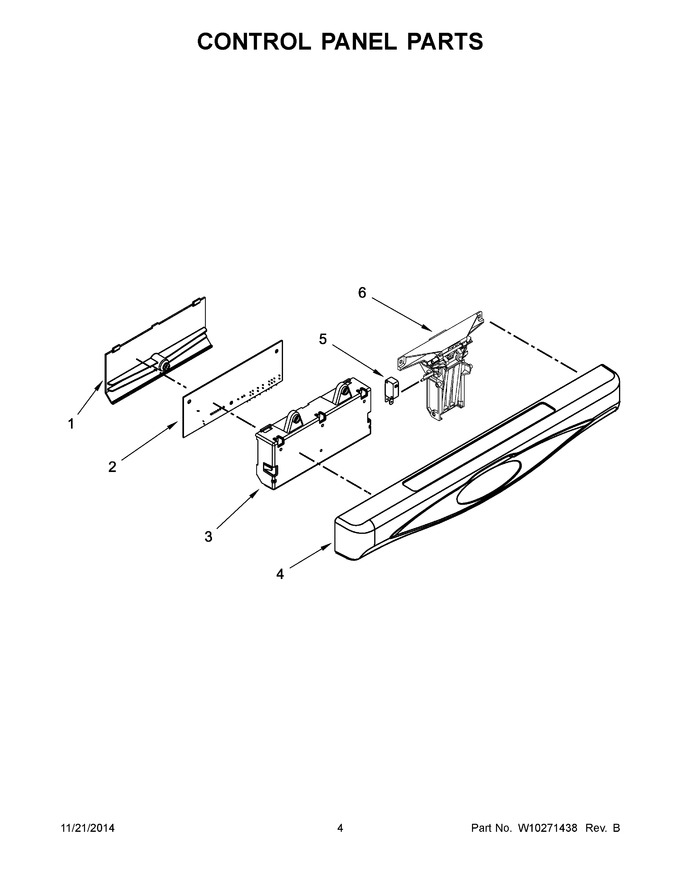

Diagram for MDBH980AWW1
