Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP99003083 Cap, Wash Arm   (Replaces: 99003083) In-Stock Immediately $ 8.43

2 99003144 Wash Arm, Lower (with Shield) Appelez-nous -
3 W10218606 Shield, Radiant Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

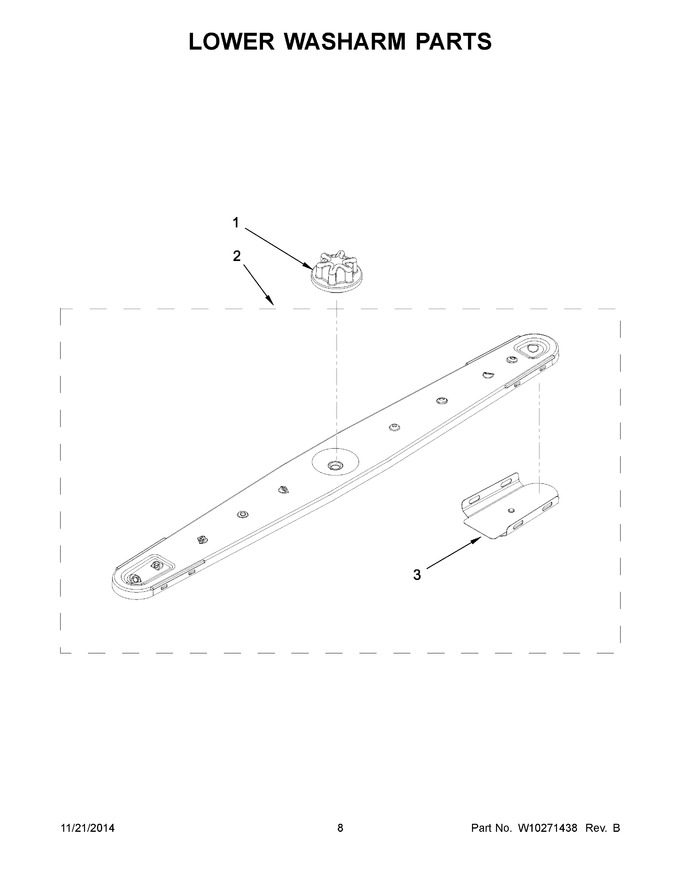

Diagram for MDBH980AWW1
