SELECT A DIAGRAM

01 - Oven


02 - Convection Fan


03 - Control Panel, Literature


04 - Oven Door


05 - Component Shelf And Latch


06 - Cabinet And Stirrer, Optional


07 - Internal Oven


08 - Microwave Compartment


09 - Magnetron And Air Flow


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3188340		Frame, Outer (black Model)		Appelez-nous	-
1	3188816		Frame, Outer (white Model)		Appelez-nous	-
1	3188339		Frame, Outer (almond Model)		Appelez-nous	-
2	3182384		Block, Foam		Appelez-nous	-
3	3184859		Seal, Foam (side) (white Or Almond Model)		Appelez-nous	-
3	3182380		Seal, Foam (side) (black Model)		Appelez-nous	-
4	3182382		Seal, Foam (top) (black Model)		Appelez-nous	-
4	3179847		Seal, Foam (top) (screw)		Appelez-nous	-
4	3184860		Seal, Foam (top) (white Or Almond Model)		Appelez-nous	-
5	3181067		Screw (4)		Appelez-nous	-
5	3179973		Rail, Microwave		Appelez-nous	-
6	3180454		Seal, Foam		Appelez-nous	-
7	3187887		Vent, Middle Trim (almond Model)		Appelez-nous	-
7	3187883		Vent, Middle Trim (black Model)		Appelez-nous	-
7	3188830		Vent, Middle Trim (white Model)		Appelez-nous	-
9	3180330		Support, Module		Appelez-nous	-
9	3185647		Screw		Appelez-nous	-
10	3180336		Back, Microwave Compartment		Appelez-nous	-
10	3185647		Screw		Appelez-nous	-
11	3182764		Ext. Module Support		Appelez-nous	-
11	3185647		Screw		Appelez-nous	-
12	3179972		Rail, Chassis		Appelez-nous	-
12	3185648		Screw		Appelez-nous	-
14	309133		Screw		Appelez-nous	-
14	3182387		Block, Foam		Appelez-nous	-
16	313756		Seal, Foam		Appelez-nous	-
17	3188372		Assembly-frame & Seal (almond Model)		Appelez-nous	-
17	3188370		Assembly-frame & Seal (black Model)		Appelez-nous	-
17	3188927		Assembly-frame & Seal (white Model)		Appelez-nous	-

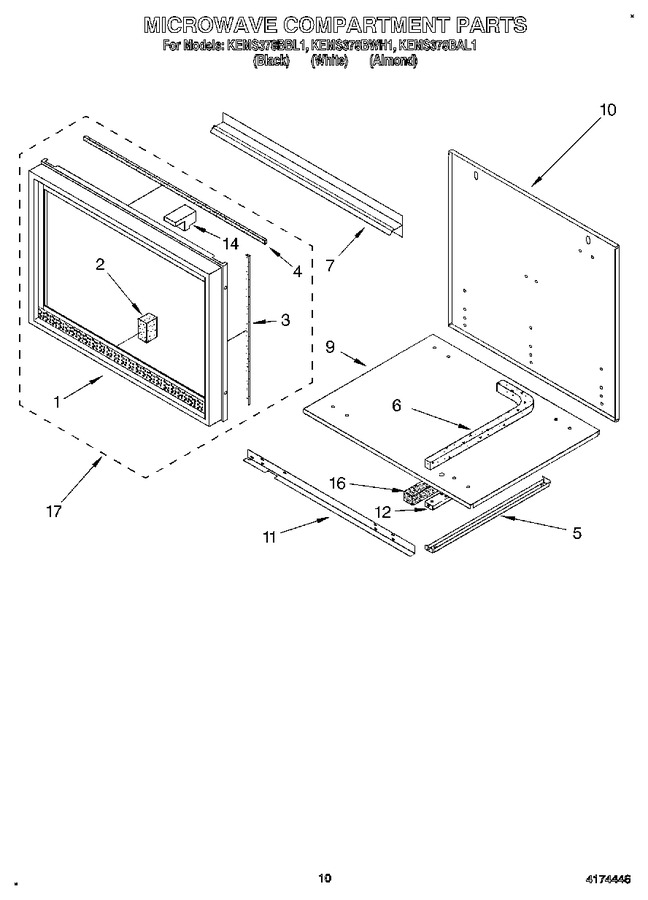

    View Diagram in Separate Window       Print Part List
