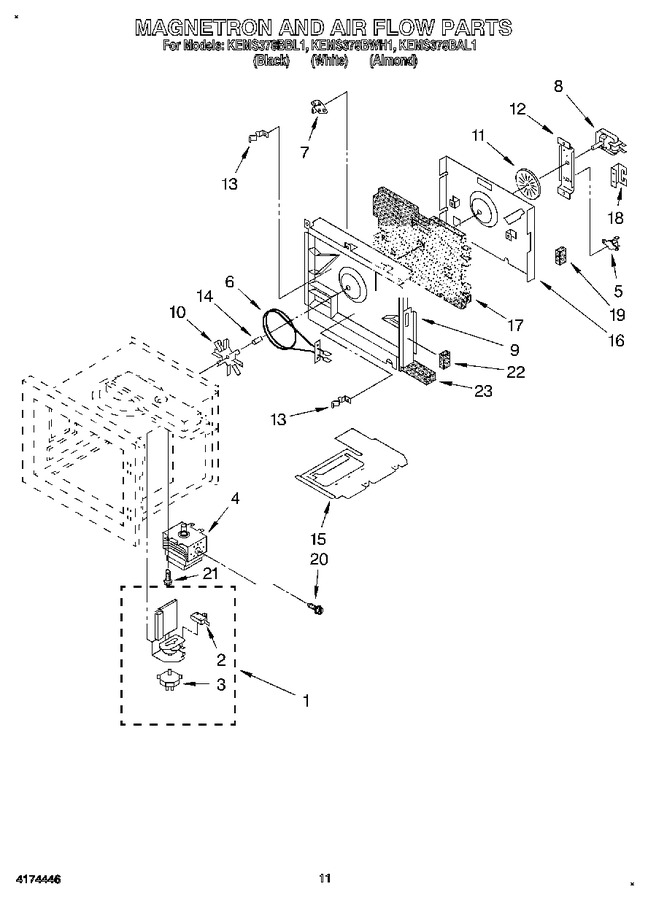

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312988 | Damper Assy. |
|
- | |||||
| 2 | 4392027 | Switch, Door (2) (Replaces: 4312823) |
|
$ 138.41 | |||||
| 3 | 4312949 | Motor, Damper |
|
- | |||||
| 4 | 4312833 | Magnetron |
|
- | |||||
| 5 | WP3188286 | Thermal Protector (2) (Replaces: 4312830) |
|
$ 66.13 | |||||
| 6 | 4312951 | Heating Element |
|
- | |||||
| 7 | 4312824 | Thermistor |
|
- | |||||
| 8 | 4312828 | Motor, Fan (convection) |
|
- | |||||
| 9 | 4312835 | Heater Duct Assy. |
|
- | |||||
| 10 | 4312984 | Fan Blade (convection) |
|
- | |||||
| 11 | 4312837 | Fan Blade (reflection) |
|
- | |||||
| 12 | 4312985 | Plate, Motor Mounting |
|
- | |||||
| 13 | 4312880 | Clip, Element (2) |
|
- | |||||
| 14 | 4312986 | Collar |
|
- | |||||
| 15 | 4312987 | Plate, Protector |
|
- | |||||
| 16 | 4312884 | Plate, Thermal Protector |
|
- | |||||
| 17 | 4312885 | Insulation |
|
- | |||||
| 18 | 4312887 | Cover, Thermal Protector |
|
- | |||||
| 19 | 4312890 | Foam Block |
|
- | |||||
| 20 | 4312919 | Screw (2) |
|
- | |||||
| 21 | 4312916 | Screw (4) |
|
- | |||||
| 22 | 4312991 | Foam Block |
|
- | |||||
| 23 | 4312990 | Seal, Foam |
|
- |
