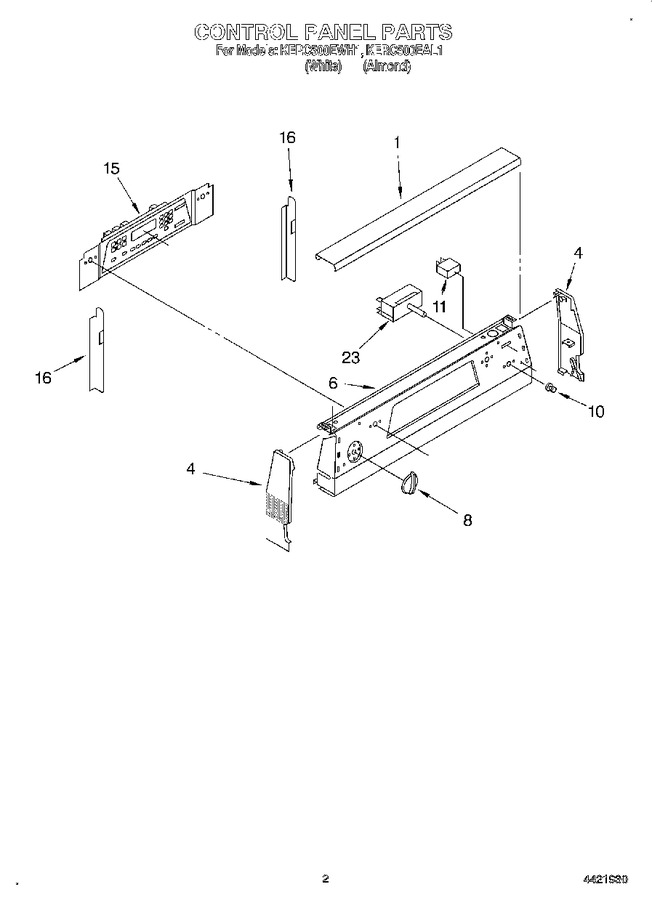

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3190562		Lamp Cover (white)		Appelez-nous	-
1	9752335		Lamp Cover (almond)		Appelez-nous	-
4	9750366FT		End Cap (left Hand) (almond)		Appelez-nous	-
4	9750366FW		End Cap (left Hand) (white)		Appelez-nous	-
4	9750367FT		End Cap (right Hand) (almond)		Appelez-nous	-
4	9750367FW		End Cap (right Hand) (white)		Appelez-nous	-
4	9780265		(end Cap Left Hand) (screw (2) 10 X 3/8)		Appelez-nous	-
6	9780852		Panel, Control (screw, (2) 8 X 3/8)		Appelez-nous	-
6	9752320PW		Panel, Control (white)		Appelez-nous	-
6	9752320PT		Panel, Control (almond)		Appelez-nous	-
8	4211913		Knobs, Control (almond)				$ 19.39
8	WP9750372FW		Knobs, Control (white)   (Replaces: 4211909)				$ 17.99
10	WP9750343		Indicator Lens   (Replaces: 9750343)			Immediately	$ 5.14
11	9750964		Light Module		Appelez-nous	-
15	9752278CT		Oven Control Assembly (almond)		Appelez-nous	-
15	9752278CP		Oven Control Assembly (white)   (Replaces: 9752278CW)		Appelez-nous	-
16	9780655		Brace, Control Pnl		Appelez-nous	-
23	WP9750638		Infinite Switch (1400w - Lr)   (Replaces: 9750638)			Immediately	$ 102.50
23	9752639		Infinite Switch (insulation, Control)		Appelez-nous	-
23	WP3400882		Infinite Switch (screw (8) 8-32 X 3/16)   (Replaces: 3400816)			Immediately	$ 6.47
23	WP9750639		Infinite Switch (1700w - Rf)   (Replaces: 9750639)			Immediately	$ 137.39
23	WP9750641		Infinite Switch (2100w - Rr)   (Replaces: 9750641)			Immediately	$ 92.72
23	8203538		Infinite Switch (2400w - Lf)   (Replaces: 9752315)			Immediately	$ 110.91

    View Diagram in Separate Window       Print Part List
