Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 UT513 Element, Broil   (Replaces: 9750967) In-Stock Immediately $ 56.69

2 9780269 Screw, Elements 8-32 X 3/8 Appelez-nous -
2 UB413 Element, Bake   (Replaces: 9750213) In-Stock Immediately $ 47.24

16 WP4448972 Light, Oven (2)   (Replaces: 4448972) Special Order $ 98.46

16 9780806 Screw (2) Appelez-nous -
18 4396923 Grill, Broiler   (Replaces: 4421424) In-Stock Immediately $ 52.04

19 4396923 Pan, Broiler   (Replaces: 4211944) In-Stock Immediately $ 52.04

21 9750498 Rack, Standard Appelez-nous -
22 3148440 Sensor Appelez-nous -
22 9780269 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

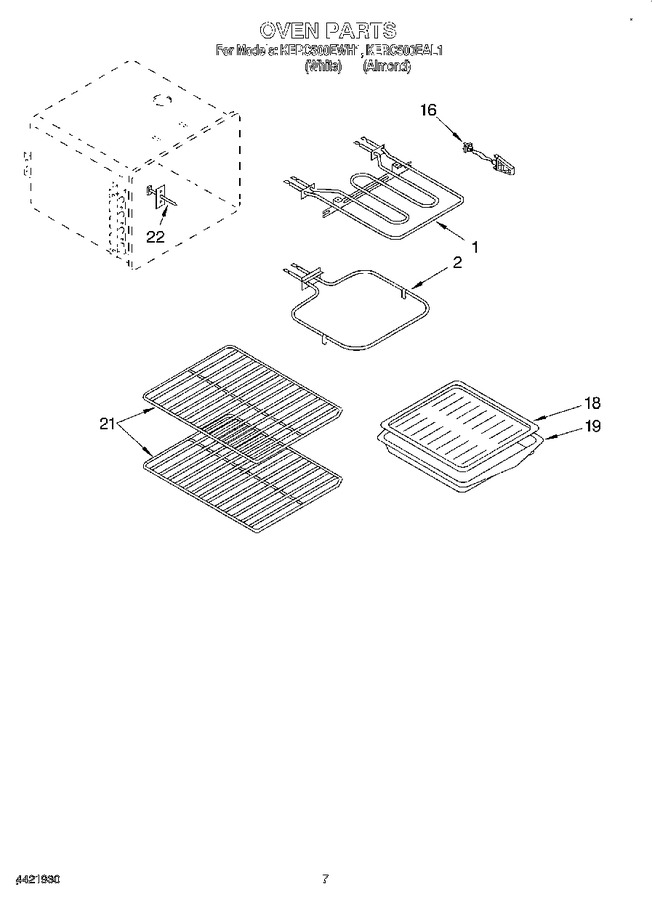

Diagram for KERC500EWH1
