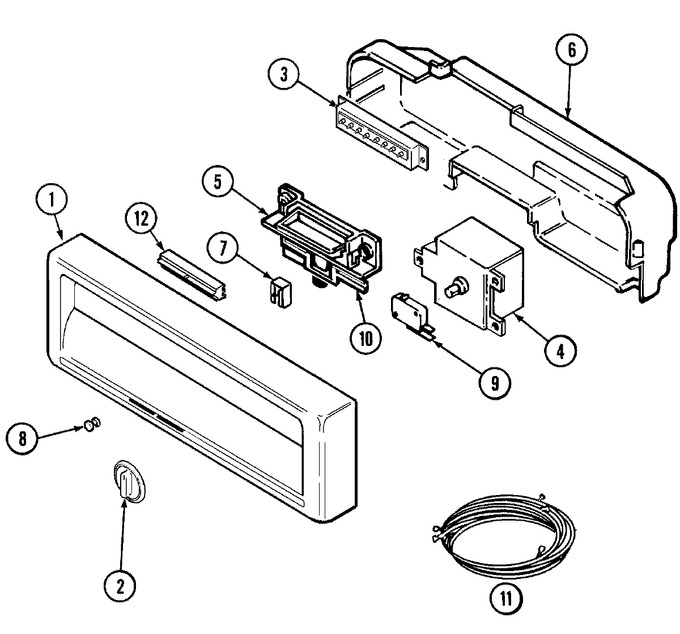

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002092		Panel, Control (wht)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99001856		Knob, Timer (wht)	10	Appelez-nous	-
3	99001855		Switch, Control (6-button)	10	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	99002057		Timer	10	Appelez-nous	-
5	WP99002240		Holder, Switch   (Replaces: 99002240)	12			$ 63.31
5	99002254		Holder, Door Switch   (Replaces: 99001077)	10			$ 116.79
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
6	99001545		Barrier, Control Panel	10	Appelez-nous	-
7	903115		Lock Light	10			$ 5.70
8	99001860		Lens, Indicator Light	10	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	10			$ 116.79
9	WP99002207		Switch, Door   (Replaces: 99002207)	12			$ 30.87
10	99001402		Foam, Latch Handle	10	Appelez-nous	-
10	W10834433		Handle, Latch (wht)   (Replaces: 99001079)	10		Immediately	$ 108.37
10	99001401		Pad, Latch	10	Appelez-nous	-
11	99002104		Wire, Jumper (motor)	10	Appelez-nous	-
11	99002045		Harness, Wire	10			$ 84.44
12	99002009		Insert, Vent Liner	10	Appelez-nous	-
13	99002024		Manual, Use & Care (eng/frch)	10	Appelez-nous	-
