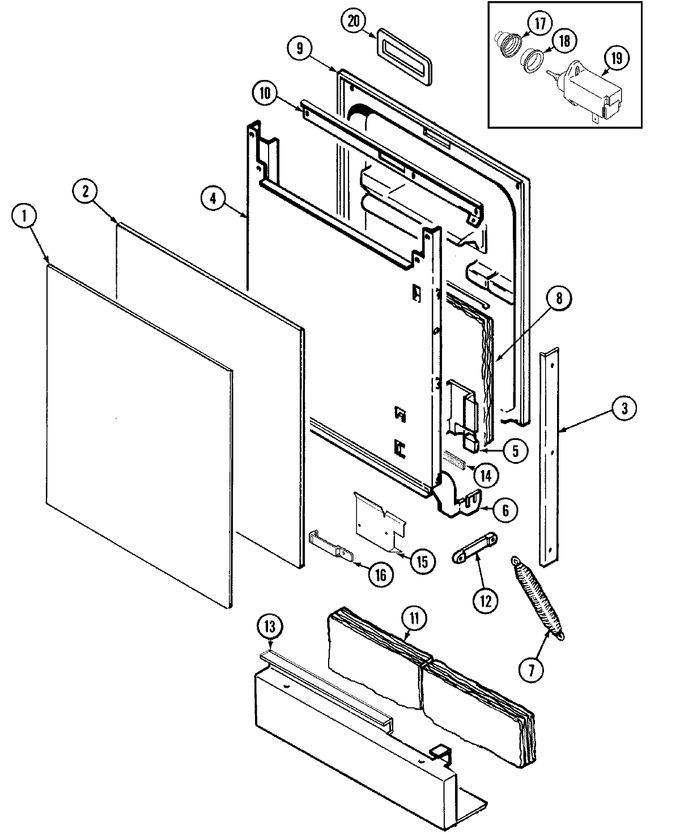

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99001659 | Insert, Front Panel (blk/wht) | 10 |
|
- | ||||
| 2 | Y913184 | Filler, Front Panel | 10 |
|
- | ||||
| 3 | Y912955 | Trim, Bottom (wht) | 10 |
|
- | ||||
| 3 | 912619 | Screw, Steel | 10 |
|
$ 11.60 | ||||
| 3 | 99001351 | Trim, Side (wht) | 10 |
|
$ 66.87 | ||||
| 4 | 912024 | Rivet | 10 |
|
- | ||||
| 4 | 99001688 | Ground Wire, Reinforcement | 10 |
|
- | ||||
| 4 | 99001892 | Door, Outer | 10 |
|
- | ||||
| 5 | Y912666 | Retainer, Wire | 10 |
|
- | ||||
| 5 | WP99002362 | Spacer, Foam (Replaces: 99002362) | 10 |
|
$ 5.55 | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 6 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 6 | 99001899 | Hinge (rt) | 10 |
|
- | ||||
| 6 | 99001898 | Hinge (lt) | 10 |
|
- | ||||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | 10 |
|
Immediately | $ 9.00 | |||
| 8 | WP6-920580 | Insulation, Door (Replaces: Y912669) | 10 |
|
$ 28.77 | ||||
| 9 | 99002383 | Door, Inner | 25 |
|
- | ||||
| 9 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 9 | 99001775 | Door, Inner (w/vent Assy) | 10 |
|
- | ||||
| 10 | Y912668 | Bar, Reinforcement | 10 |
|
- | ||||
| 11 | Y912836 | Insulation, Access Panel | 10 |
|
- | ||||
| 12 | WP912653 | Link, Door Spring (Replaces: 912653) | 10 |
|
Immediately | $ 7.45 | |||
| 13 | 99001411 | Panel, Access (wht) | 10 |
|
- | ||||
| 13 | 99001194 | Screw, Access Panel | 10 |
|
$ 6.18 | ||||
| 14 | 903233 | Foam Strip, Insulation | 10 |
|
- | ||||
| 15 | 99001414 | Shield, Tub | 10 |
|
- | ||||
| 15 | WPW10339879 | Strap, Cable (Replaces: 912266) | 10 |
|
$ 7.11 | ||||
| 16 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 16 | 99001444 | Strap, Harness | 10 |
|
- | ||||
| 17 | 99001805 | Grommet, Vent | 10 |
|
- | ||||
| 18 | 99001806 | Retainer, Grommet | 10 |
|
- | ||||
| 19 | 99001807 | Motor, Wax | 10 |
|
$ 34.32 | ||||
| 20 | 99001783 | Seal, Vent Back | 10 |
|
- |
