SELECT A DIAGRAM

01 - Cabinet & Faucet Coupler Assy.


02 - Control Panel


03 - Door


04 - Pump & Motor


05 - Supplemental Information


06 - Track & Rack Assembly


07 - Tub


08 - Water Distribution Assembly


09 - Wiring Information

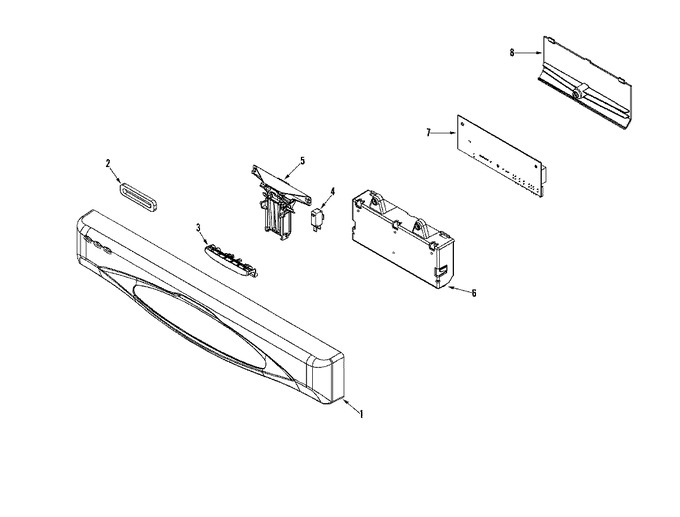

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99003223		Panel, Control (blk)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99003222		Vent Seal, Control Panel	10			$ 8.61
3	99002577		Handle, Latch (blk)	10	Appelez-nous	-
4	99002751		Switch, Door	10			$ 23.02
5	WPW10275768		Latch Assembly   (Replaces: 99003347)	10		Immediately	$ 79.15
6	99002576		Housing, Board (base)	10			$ 25.18
6	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
7	99003360		Board, Control	19	Appelez-nous	-
7	W10111824		Board, Control	36	Appelez-nous	-
7	99003616		Board- Con	33	Appelez-nous	-
8	99002575		Housing, Board (top)	10			$ 20.11
8	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
9	99003537		Harness, Wire	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
