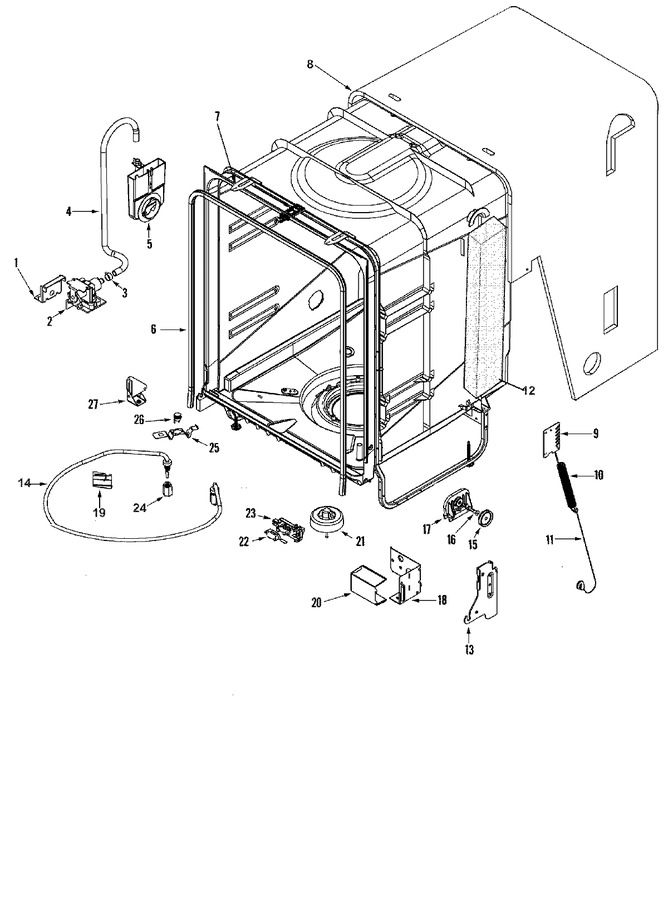

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489128 | Screw-no.8x7/16 Hex Washer Head (Replaces: 99002553) | 10 |
|
$ 9.79 | ||||
| 1 | 99003567 | Bracket, Water Valve | 10 |
|
- | ||||
| 2 | 99003568 | Valve, Water | 10 |
|
- | ||||
| 2 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 3 | WP596669 | Clamp, Spring (Replaces: 911856) | 10 |
|
Immediately | $ 7.56 | |||
| 4 | 99002852 | Hose, Injector | 10 |
|
$ 42.55 | ||||
| 5 | 99002645 | Inlet, Air/water | 10 |
|
$ 59.03 | ||||
| 5 | 99002646 | Seal, Air/water Inlet | 10 |
|
$ 8.00 | ||||
| 6 | 99002588 | Seal, Door | 10 |
|
$ 81.57 | ||||
| 7 | 99003563 | Bracket, Cabinet Mount | 10 |
|
- | ||||
| 8 | 911917 | Fastener, Insulation | 10 |
|
- | ||||
| 8 | 99002408 | Insulation, Tub (short) | 10 |
|
- | ||||
| 9 | 99002610 | Bracket, Spring Adjustment | 10 |
|
- | ||||
| 9 | 99002601 | Screw 10-32x.400 (t-20 Head) | 10 |
|
- | ||||
| 10 | 99002598 | Spring, Door | 10 |
|
$ 5.83 | ||||
| 11 | WP99003446 | Door Cable Assembly (Replaces: 99003446) | 10 |
|
Immediately | $ 7.90 | |||
| 12 | 99003564 | Barrier, Eps | 10 |
|
- | ||||
| 13 | 99002928 | Support, Hinge (lt) | 10 |
|
- | ||||
| 13 | 99002601 | Screw 10-32x.400 (t-20 Head) | 10 |
|
- | ||||
| 13 | 99002927 | Support, Hinge (rt) | 10 |
|
- | ||||
| 14 | 99002973 | Gasket, Heater | 10 |
|
$ 6.76 | ||||
| 14 | W10283681 | Heater (w/gasket) (Replaces: 99002971) | 10 |
|
$ 118.85 | ||||
| 15 | 99002608 | Roller, Cable Bracket | 10 |
|
$ 9.46 | ||||
| 16 | 99002609 | Shoulder Bolt, Cable Bracket | 10 |
|
$ 6.62 | ||||
| 17 | 99002607 | Bracket, Cable | 10 |
|
$ 6.98 | ||||
| 18 | 99002601 | Screw 10-32x.400 (t-20 Head) | 10 |
|
- | ||||
| 18 | 99002637 | Bracket, Junction Box Support | 10 |
|
- | ||||
| 19 | WP6-917262 | Bracket, Heater Support (Replaces: 99002626) | 10 |
|
$ 150.11 | ||||
| 20 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 20 | 99002638 | Cover, Junction Box | 10 |
|
- | ||||
| 21 | 99002630 | Float | 10 |
|
- | ||||
| 22 | 99002631 | Switch, Float | 10 |
|
- | ||||
| 23 | 99002943 | Plate, Switch Mounting | 10 |
|
$ 6.75 | ||||
| 23 | WP3390631 | Screw, Steel Hex Hd Plasite (Replaces: 99002749) | 10 |
|
$ 7.04 | ||||
| 24 | WP6-920168 | Nut, Heater (Replaces: 99002972) | 10 |
|
$ 2.66 | ||||
| 25 | 99002634 | Clip, Thermostat | 10 |
|
$ 5.51 | ||||
| 26 | 99002633 | Thermostat, Limiting | 10 |
|
$ 33.69 | ||||
| 27 | 99002601 | Screw 10-32x.400 (t-20 Head) | 10 |
|
- | ||||
| 27 | 99002636 | Bracket, Support (lt) | 10 |
|
- |
