Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002575 Housing, Board (top) Special Order $ 20.11

2 W10218832 Board, Control Special Order $ 186.24

3 99002576 Housing, Board Special Order $ 25.18

4 6-920396 Panel, Control (black) Special Order $ 200.91

4 6-920397 Panel, Control (white) Appelez-nous -
5 99002751 Switch, Door Special Order $ 23.02

6 WPW10275768 Latch, Assembly   (Replaces: W10275768) In-Stock Immediately $ 79.15

7 99003222 Vent Seal, Control Panel Special Order $ 8.61


    View Diagram in Separate Window     Print Icon   Print Part List

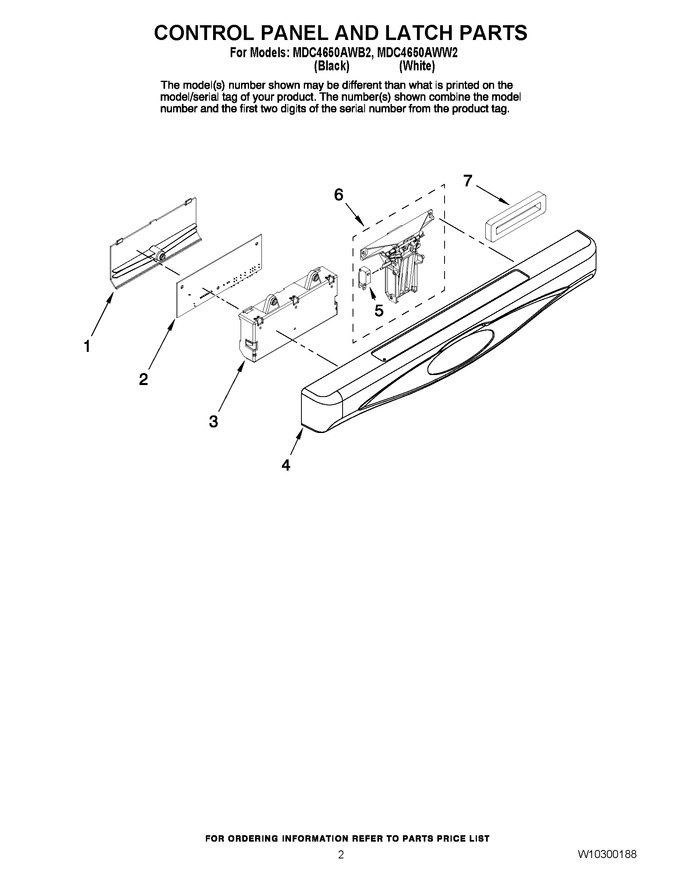

Diagram for MDC4650AWB2
