SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts

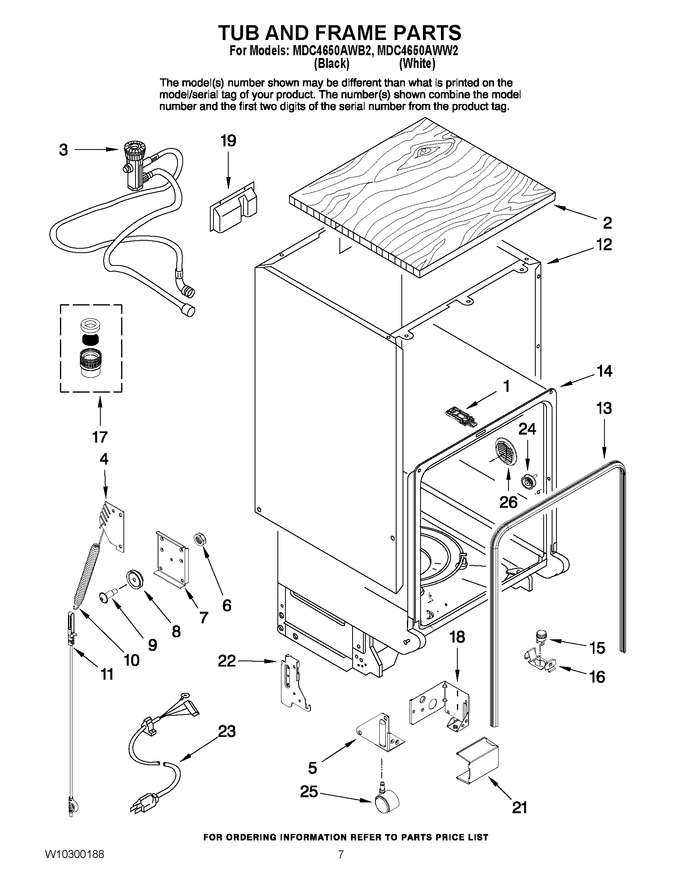

07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10119337		Strike, Door				$ 23.34
2	W10131214		Panel, Top		Appelez-nous	-
3	WPW10187809		Coupler Assy   (Replaces: W10187809)				$ 253.77
4	6-918346		Bracket, Spring Adjustment				$ 19.04
5	99002636		Bracket, Support (left)		Appelez-nous	-
6	99003688		Nut				$ 5.51
7	W10173920		Bracket, Cable		Appelez-nous	-
8	99002608		Roller, Cable Bracket				$ 9.46
9	99003687		Bolt, Shoulder				$ 5.33
10	99002598		Spring, Door				$ 5.83
11	WP99003446		Door Cable Assy.   (Replaces: 99003446)			Immediately	$ 7.90
12	W10189195		Shell Assy		Appelez-nous	-
13	99002588		Seal, Door				$ 81.57
14	W10142297		Tub Assembly		Appelez-nous	-
15	99002633		Thermostat, Limiting				$ 33.69
16	99002634		Clip, Thermostat				$ 5.51
17	30168LF		Adapter Assy   (Replaces: 3374592)			Immediately	$ 10.94
18	6-917103		Bracket, Junction Box				$ 51.69
19	W10140285		Housing, Hose		Appelez-nous	-
21	6-916711		Cover, Junction Box		Appelez-nous	-
22	W10137496		Support, Hinge (left)		Appelez-nous	-
22	W10137495		Support, Hinge (right)		Appelez-nous	-
23	901115		Cord, Power				$ 42.68
24	W10169506		Wheel, Tub		Appelez-nous	-
25	WP903297		Caster   (Replaces: 903297)				$ 11.11
26	99002948		Grill, Air/water				$ 5.84

    View Diagram in Separate Window       Print Part List
