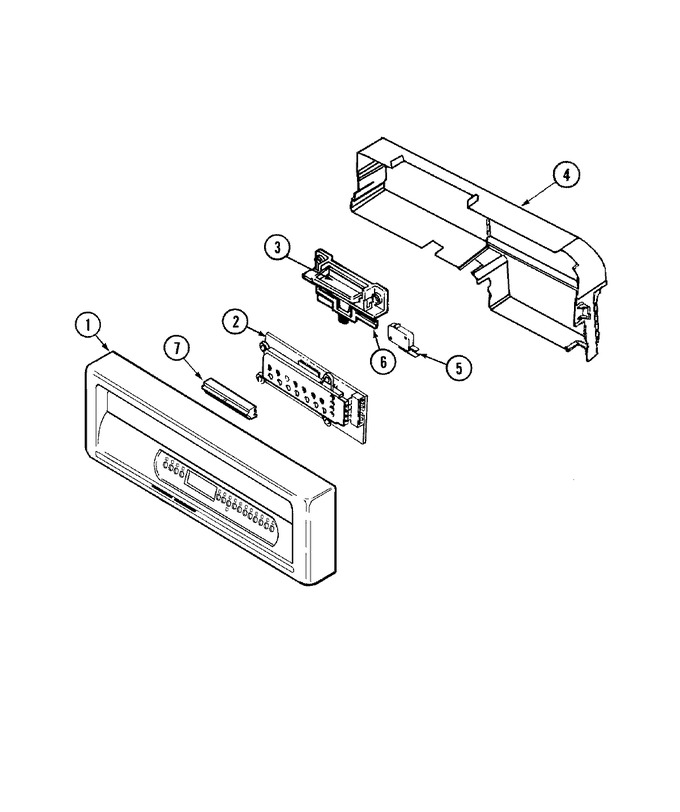

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002283		Control Panel Asy (wht)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99002364		Pcb Assembly (9-button)	10	Appelez-nous	-
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
3	WP99002240		Holder, Switch   (Replaces: 99002240)	10			$ 63.31
4	99002080		Barrier, Control Panel	10	Appelez-nous	-
5	WP99002207		Switch, Door   (Replaces: 99002207)	10			$ 30.87
6	99002381		Foam, Latch Handle	10	Appelez-nous	-
6	W10834433		Handle, Latch (wht)   (Replaces: 99002085)	10		Immediately	$ 108.37
6	99001401		Pad, Latch	10	Appelez-nous	-
6	99002382		Cover, Latch	10	Appelez-nous	-
7	99002009		Insert, Vent Liner	10	Appelez-nous	-
8	99002488		Harness, Wire	27	Appelez-nous	-
8	99002263		Harness, Wire	10			$ 68.07
9	99002373		Manual, Use & Care (eng/frch)	10	Appelez-nous	-
