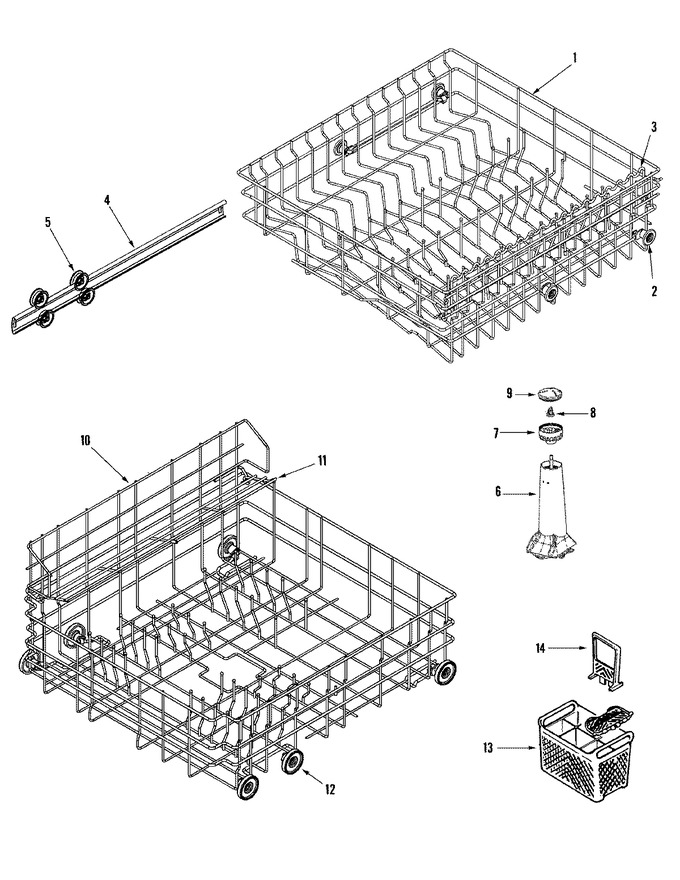

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001507		Rack Assembly (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99002397		Rack Assembly (lwr)	10	Appelez-nous	-
4	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)	10		Immediately	$ 9.90
5	WP99002947		Shaft, Tub Wheel   (Replaces: 99002343)	10		Immediately	$ 10.58
6	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 99001751)	10		Immediately	$ 54.28
7	902990		Shelf, Rack (lwr)	10	Appelez-nous	-
8	WP99002135		Stop, Rack (gray)   (Replaces: 99002135)	10			$ 7.92
9	99001508		Shelf, Rack (upr)	10	Appelez-nous	-
10	99002478		Tower, Spray (w/shaft-wht)	10	Appelez-nous	-
11	99001442		Diverter, Spray (gray)	10			$ 5.84
12	99001443		Cap, Spray Diverter (gray)	10			$ 5.51
13	99001426		Nut, Discharge Housing	10			$ 5.84
14	Y912545		Track, Rack	10			$ 40.33
15	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	10			$ 6.90
15	99002342		Wheel, Tub	10			$ 8.89
15	99002915		Wheel, Tub	28	Appelez-nous	-
16	Y912708		Handle, Silverware Basket	10	Appelez-nous	-
17	99002016		Cap, Rack (wht)	10	Appelez-nous	-
17	99002017		Cap, Rack (light Gray)	10			$ 5.22
