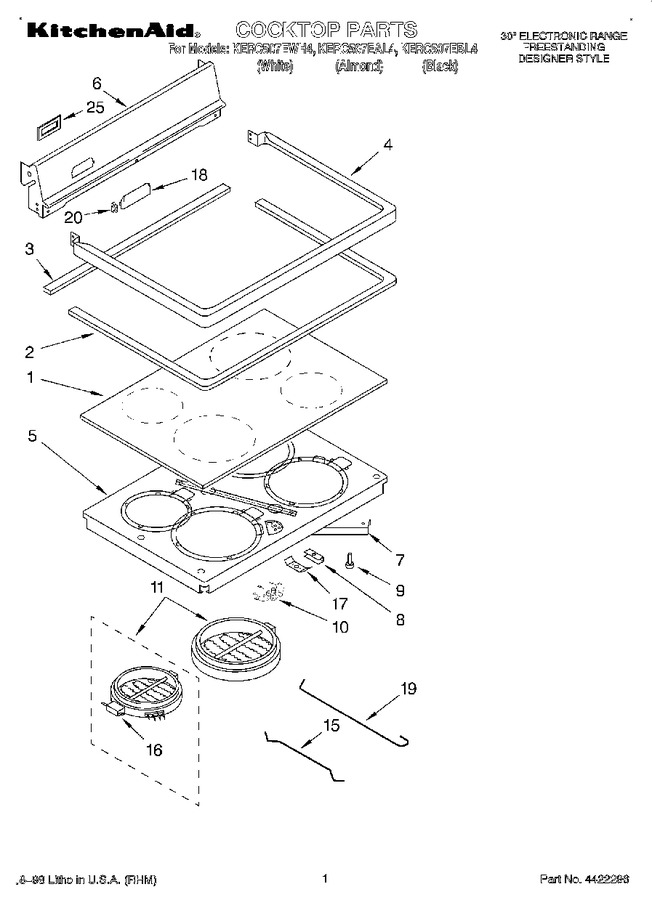

01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752311CW | Cooktop, Ceran (white Mdl.) |
|
- | |||||
| 1 | 9752311CT | Cooktop, Ceran (almond Mdl.) |
|
- | |||||
| 1 | 9752311CB | Cooktop, Ceran (black Mdl.) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (front & Sides) (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9781614 | Rear Gasket |
|
$ 47.02 | |||||
| 4 | 9750456PW | Frame, Cooktop (white) |
|
- | |||||
| 4 | 9750456PT | Frame, Cooktop (almond) |
|
- | |||||
| 4 | 9750456PG | Frame, Cooktop (black) |
|
- | |||||
| 5 | 9781549 | Support, Element |
|
- | |||||
| 6 | 9752337GT | Back Splash (almond) |
|
- | |||||
| 6 | 3149333 | Back Splash (screw (4) 10ab X 1/2``) |
|
$ 5.33 | |||||
| 6 | 9752337GB | Back Splash (black) |
|
- | |||||
| 6 | 9752337GW | Back Splash (white) |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 7 | 9780272 | Screw (2) 10 X 3/4`` |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 8 | 423248 | Screw, (4) 10 X 3/4`` |
|
- | |||||
| 9 | 238614 | Bumper (4) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9781497 | Hot Light |
|
- | |||||
| 11 | W10823694 | Element, Surface (2400w - Lf) (Replaces: 4454592) |
|
Immediately | $ 320.29 | ||||
| 11 | 3189895 | Element, Surface (1700w - Rf) |
|
- | |||||
| 11 | 3189896 | Element, Surface (2100w - Rr) |
|
- | |||||
| 11 | 3189894 | Element, Surface (1400w - Lr) |
|
- | |||||
| 15 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 16 | 3190253 | Limiter, Temp. (1400 W - Lr) |
|
- | |||||
| 16 | 3190441 | Limiter, Temp (2400w - Lf) |
|
- | |||||
| 16 | 3190252 | Limiter, Temp (2100w - Rr) |
|
- | |||||
| 16 | 3190250 | Limiter, Temp (1700w - Rf) |
|
- | |||||
| 17 | WP9781235 | Screw, Anchor (Replaces: 9781235) |
|
$ 10.76 | |||||
| 18 | 9752949PB | Cover, Vent (black) |
|
- | |||||
| 18 | 9752949PW | Cover, Vent (white) |
|
- | |||||
| 18 | 9752949PT | Cover, Vent (almond) |
|
- | |||||
| 19 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 20 | 3149190 | Clip, Mounting |
|
- | |||||
| 25 | 9750767 | Gasket |
|
- |
