SELECT A DIAGRAM
01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:

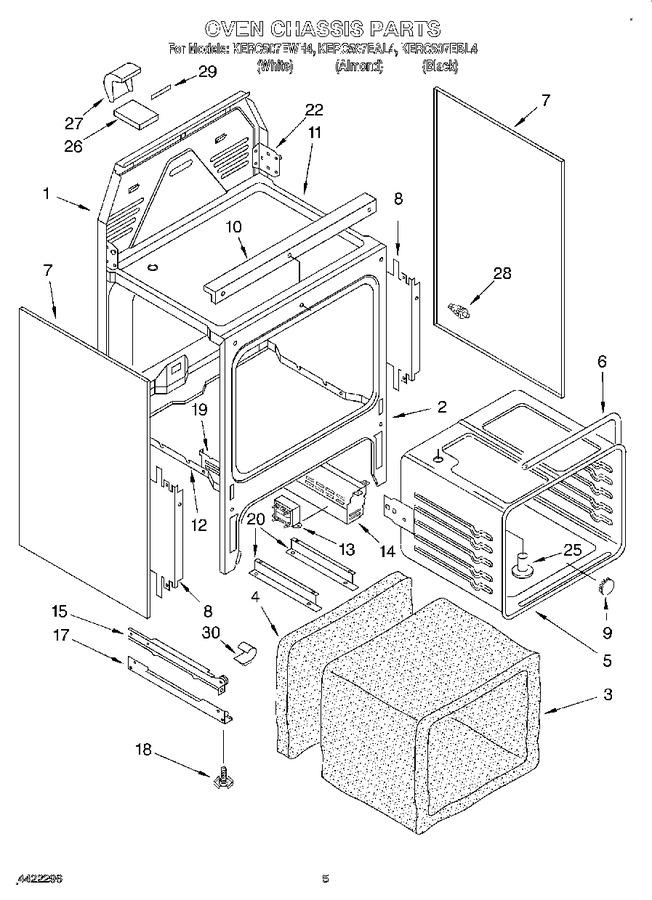

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9750146 | Main Chassis, Back |
|
- | |||||
| 2 | 9750514GM | Chassis, Front |
|
- | |||||
| 3 | 9750222 | Insulation, Wrap |
|
- | |||||
| 4 | 9750221 | Insulation, Rear |
|
- | |||||
| 5 | 3191046GM | Oven Liner |
|
- | |||||
| 6 | 3191649 | Gasket, Oven |
|
- | |||||
| 7 | 9780265 | Oven , Side L Or R (screw (4) 10 X 3/8) |
|
- | |||||
| 7 | 9750148PW | Oven , Side L Or R (white) |
|
- | |||||
| 7 | 9750148PT | Oven , Side L Or R (almond) |
|
- | |||||
| 7 | 9750148PB | Oven , Side L Or R (black) |
|
- | |||||
| 8 | 9780265 | Screw (2) |
|
- | |||||
| 8 | 9781447 | Shield, Insulation |
|
- | |||||
| 9 | 9780578 | Button, Plug |
|
- | |||||
| 10 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 10 | 9780585 | Guard, Wire |
|
$ 35.21 | |||||
| 11 | 9780265 | Screw (7) 10 X 3/8 |
|
- | |||||
| 11 | 9750478 | Burner Box |
|
- | |||||
| 11 | 9780275 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 12 | 9780265 | Screw (9) |
|
- | |||||
| 12 | 9750142 | Oven Bottom |
|
- | |||||
| 13 | WP9760588 | Transformer, Light (Replaces: 4450328) |
|
$ 237.07 | |||||
| 14 | 9751060 | Support, Fan |
|
- | |||||
| 14 | 9781509 | Screw |
|
- | |||||
| 15 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 15 | 9750223 | Drawer Rail, Left |
|
- | |||||
| 15 | 9750224 | Rail, Drawer (right) |
|
- | |||||
| 17 | 9750147 | Bottom Rail (2) |
|
- | |||||
| 17 | 9780265 | Screw, (8) 10 X 3/8 |
|
- | |||||
| 18 | WPW10058460 | Foot, (4) (Replaces: 312701) |
|
Immediately | $ 7.07 | ||||
| 19 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 19 | 9750149 | Hinge, Base L Or R |
|
- | |||||
| 20 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 20 | 421771 | Support Rail, Pan |
|
- | |||||
| 22 | 9780265 | Screw (4) 10 X 3/8 |
|
- | |||||
| 22 | 9750258 | Hinge, Cktp.-left |
|
- | |||||
| 22 | 9750416 | Hinge, Cktp.-right |
|
- | |||||
| 25 | 9753091 | Vent Tube |
|
- | |||||
| 26 | 9750393 | Cover, Vent |
|
- | |||||
| 27 | 9750394 | Back, Vent |
|
- | |||||
| 27 | 9780265 | Screw, (1) 10 X 3/8 |
|
- | |||||
| 28 | 9781581 | Switch, Door-light |
|
$ 65.60 | |||||
| 29 | 9750767 | Vent Gasket |
|
- | |||||
| 30 | 9781555 | Clip, Wire |
|
- | |||||
| 30 | 9751745 | Anti-tip Kit |
|
$ 19.35 |
