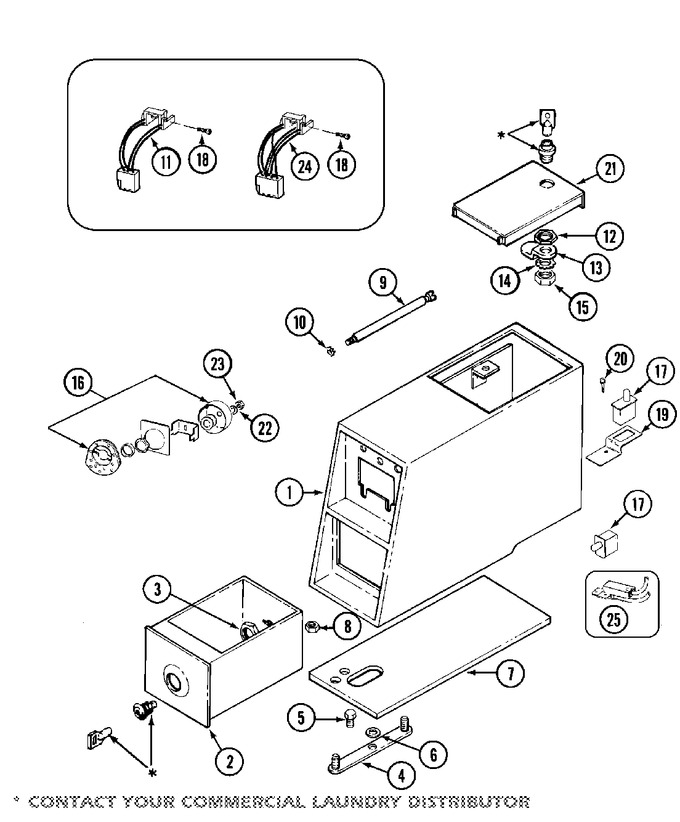

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22001407		Case, Coin Slide (wht)	A0	Appelez-nous	-
001	22001408		(alm)	A0	Appelez-nous	-
002	207912		Box, Coin (wht)----sub	A0	Appelez-nous	-
002	207912L		(alm)	A0	Appelez-nous	-
003	W11395752		Nut, Lock   (Replaces: 212328)	A0			$ 11.74
004	NLA		Strap, Mounting	A0	Appelez-nous	-
005	WP90767		Screw, Mounting Strap   (Replaces: 211294)	A0		Immediately	$ 7.04
006	910309		Washer, Strap Screw	A0	Appelez-nous	-
007	214660		Gasket, Meter Case	A0	Appelez-nous	-
008	WP62739		Nut, Case Mounting   (Replaces: Y052740)	A0			$ 6.85
009	211605		Retainer, Locking Bolt	A0	Appelez-nous	-
009	213035		Bolt, Locking	A0			$ 5.84
010	910181		Lockwasher, Locking Bolt	A0	Appelez-nous	-
011	207953		Optic Switch Assy. (4 Wire)	A0	Appelez-nous	-
012	W11395752		Nut, Lock Cam   (Replaces: 212328)	A0			$ 11.74
013	W11165684		Cam, Lock   (Replaces: 213750)	A0			$ 8.20
014	WPW10133264		Lockwasher, Lock Cam   (Replaces: 22001354)	A0			$ 125.12
015	22001355		Nut, Lock Cam	A0	Appelez-nous	-
016	NLA		Lock Cam Assembly	A0	Appelez-nous	-
017	WPW10131838		Switch, Sensor   (Replaces: 33001250)	A0			$ 21.52
018	WP3395530		Screw, Optic Switches   (Replaces: 314665)	A0			$ 6.93
019	22001404		Bracket, Switch	A0	Appelez-nous	-
020	WP90767		Screw, Switch Bracket   (Replaces: 212276)	A0		Immediately	$ 7.04
021	204216		Door, Access (wht)	A0	Appelez-nous	-
021	204216L		(alm)	A0	Appelez-nous	-
022	WPW10133264		Lockwasher, Lock Cam   (Replaces: 22001354)	A0			$ 125.12
023	22001355		Nut, Lock Cam	A0	Appelez-nous	-
024	206799		Optic Switch Assy. (6 Wire)	A0			$ 113.64
025	208045		Harness, Wire (sensor Sw`s.)	A0	Appelez-nous	-
