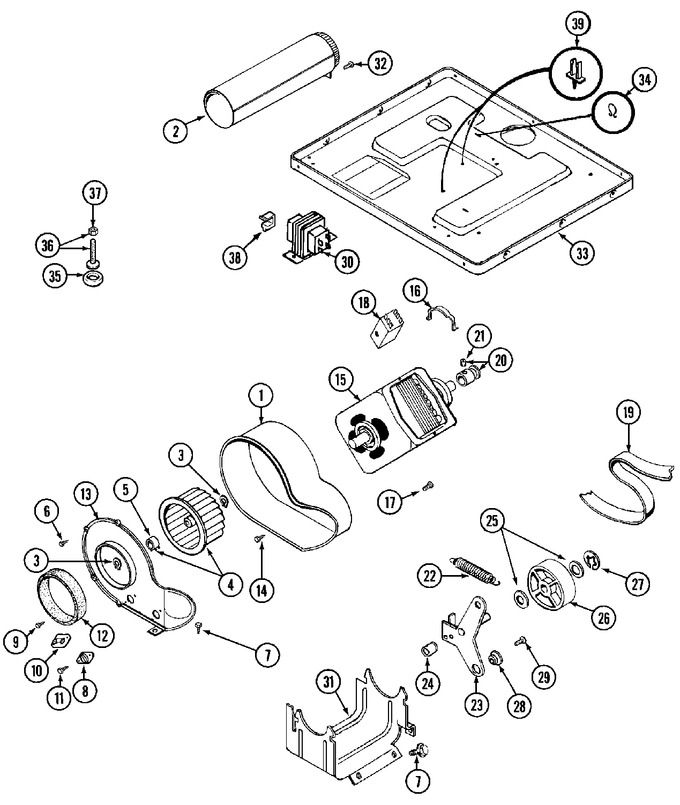

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y312893		Housing, Blower	A0			$ 55.67
002	Y303442		Exhaust Duct Assembly	A0	Appelez-nous	-
003	WP9703438		Ring, Retaining   (Replaces: 410233)	A0		Immediately	$ 3.81
004	Y303836		Blower Wheel Assembly	A0		Immediately	$ 32.35
005	WP312967		Clamp, Blower Wheel   (Replaces: 312967)	A0		Immediately	$ 10.68
006	WPW10116751		Screw, Housing Cover   (Replaces: Y312961)	A0			$ 6.74
007	Y313561		Screw, Housing Cover	A0			$ 5.27
008	306056		Thermistor Temp Control	A0			$ 39.41
008	WP33303391		Thermostat, Cycling   (Replaces: Y303391)	A0			$ 127.00
009	WP90767		Screw, Thermostat   (Replaces: 211294)	A0		Immediately	$ 7.04
010	WP306604		Cut-off, Thermal   (Replaces: 306604)	A0		Immediately	$ 37.77
011	NLA		Screw, Thermal Cut-off	A0	Appelez-nous	-
012	WPY312901		Seal, Housing Cover   (Replaces: Y312901)	A0			$ 60.70
013	314778		Cover, Blower Housing	A0	Appelez-nous	-
014	Y310632		Screw, Blower Housing	A0	Appelez-nous	-
015	Y304656		Motor (240v-50h)	A0	Appelez-nous	-
016	WPY015825		Clip, Motor   (Replaces: Y015825)	A0			$ 21.03
017	WPW10116751		Screw, Spacer   (Replaces: Y312961)	A0			$ 6.74
018	306207		Prod. Idno. 303358-8 & 303358-9		Appelez-nous	-
018	NLA		Switch, Motor External Start	A0	Appelez-nous	-
019	WPY312959		Belt, Tumbler & Motor   (Replaces: Y312959)	A0		Immediately	$ 30.66
020	305186		Pulley, Motor (w/set Screw)	A0	Appelez-nous	-
021	Y053241		Screw, Set	A0	Appelez-nous	-
022	Y303945		Idler Spring Assembly	A0	Appelez-nous	-
023	WP6-3033630		Idler Arm & Shaft Assembly   (Replaces: Y303363)	A0		Immediately	$ 68.43
024	WPW10116756		Spacer, Idler Bracket   (Replaces: Y313582)	A0			$ 43.70
025	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: Y312527)	A0		Immediately	$ 10.01
026	WP6-3037050		Pulley, Idler (w/bearing)   (Replaces: Y303705)	A0		Immediately	$ 19.89
027	WP354987		Ring, Retaining   (Replaces: 312958)	A0		Immediately	$ 10.58
028	WP315772		Sleeve, Idler Arm   (Replaces: 315772)	A0		Immediately	$ 10.39
029	WPY014874		Screw, Idler Arm & Sleeve   (Replaces: Y014874)	A0			$ 6.98
030	WP90767		Screw, Transformer   (Replaces: 211294)	A0		Immediately	$ 7.04
030	22001417		Transformer	A0	Appelez-nous	-
030	307928		Transformer	A0	Appelez-nous	-
030	WP90767		Screw, Transformer   (Replaces: Y313559)	A0		Immediately	$ 7.04
031	NLA		Support, Motor	A0	Appelez-nous	-
032	Y310632		Screw, Exhaust Duct	A0	Appelez-nous	-
033	Y305084		Base Assembly	A0	Appelez-nous	-
034	410490		Spring, Wire Harness	A0	Appelez-nous	-
035	Y314137		Foot, Rubber	A0			$ 14.08
036	WP233550		Leg & Nut   (Replaces: Y305086)	A0			$ 7.16
037	WP62739		Nut, Leg   (Replaces: Y052740)	A0			$ 6.85
038	Y310376		Clip, Cable	A0	Appelez-nous	-
039	315471		Retainer, Wire	A0	Appelez-nous	-
