01 - Body

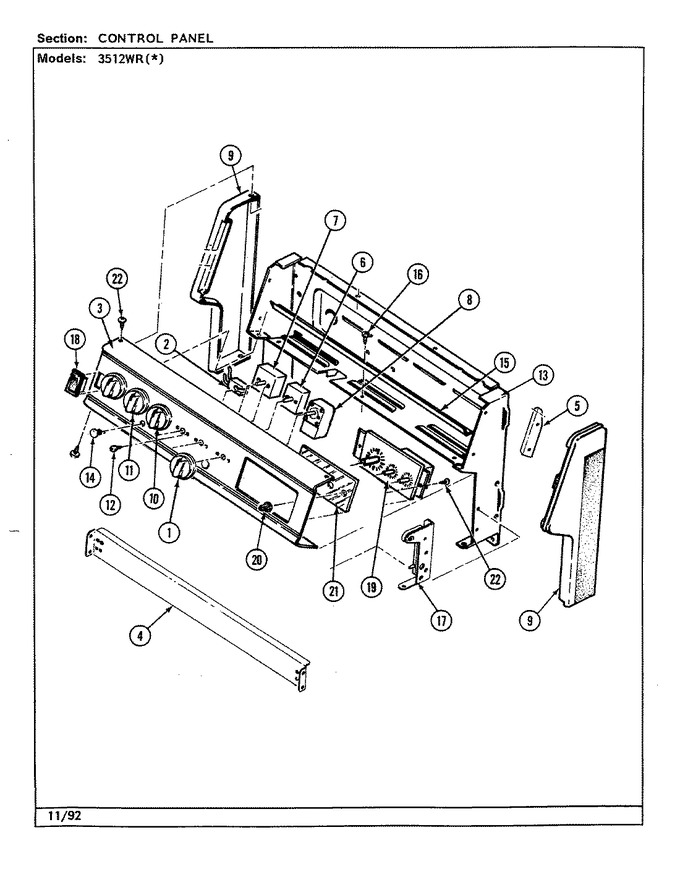

02 - Control Panel
03 - Oven
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7735P031-60 | Knob, Thermostat | 01 |
|
- | ||||
| 2 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 16 |
|
$ 106.11 | ||||
| 3 | 2601F402-09 | Panel, Control | 01 |
|
- | ||||
| 4 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 5 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 5 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 6 | 7403P254-60 | Switch | 01 |
|
- | ||||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 8 | 7404P081-60 | Thermostat | 01 |
|
- | ||||
| 9 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 9 | 7726P051-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 9 | 7726P052-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 9 | 7101P317-60 | Screw | 01 |
|
- | ||||
| 10 | 7739P045-60 | Knob, Selector | 01 |
|
- | ||||
| 11 | WP7737P030-60 | Knob, Switch (Replaces: 7737P030-60) | 01 |
|
$ 17.81 | ||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 13 | 4001F091-51 | Housing, Control Panel | 01 |
|
- | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 16 |
|
$ 6.73 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 15 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 16 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 17 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 17 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 18 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 19 | 7601P186-60 | Clock | 01 |
|
- | ||||
| 20 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 21 | 7201P056-60 | Gasket | 01 |
|
- | ||||
| 21 | 7902P109-60 | Glass, Clock | 01 |
|
- | ||||
| 22 | 5125A314-60 | Wire, Loose | 01 |
|
- | ||||
| 22 | 5170D117-60 | Harness, Control Panel | 01 |
|
- | ||||
| 22 | WPY706189 | Screw (Replaces: 7118P019-60) | 01 |
|
Immediately | $ 6.47 | |||
| 23 | 8113P021-60 | Manual, Use & Care | 01 |
|
- | ||||
| 23 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
