SELECT A DIAGRAM
01 - Body
02 - Control Panel

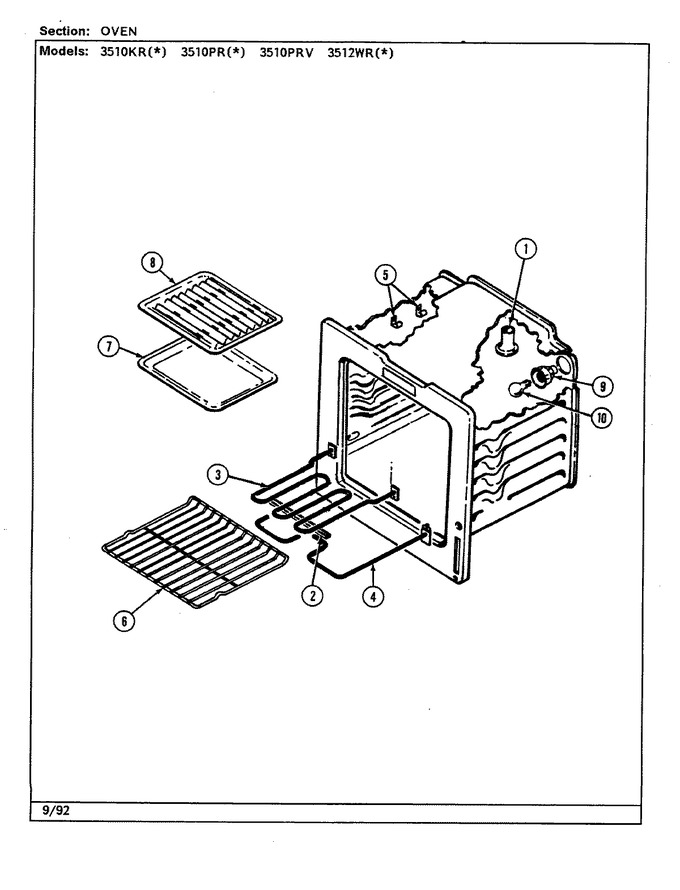

03 - Oven
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8026P019-60 | Tube, Vent | 01 |
|
- | ||||
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 3807F389-45 | Support, Element | 01 |
|
- | ||||
| 2 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 3 | Y04000057 | Element, Broil | 01 |
|
$ 94.48 | ||||
| 4 | WP74003019 | Element, Bake (Replaces: Y04000058) | 01 |
|
Immediately | $ 51.10 | |||
| 5 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 6 | WPW10282492 | Rack (Replaces: 7801P040-60) | 01 |
|
$ 65.15 | ||||
| 7 | Y3401F02019 | Pan, Broil | 01 |
|
- | ||||
| 8 | Y3413F01619 | Insert, Broil Pan | 01 |
|
- | ||||
| 9 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 01 |
|
Immediately | $ 66.10 | |||
| 10 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 |
