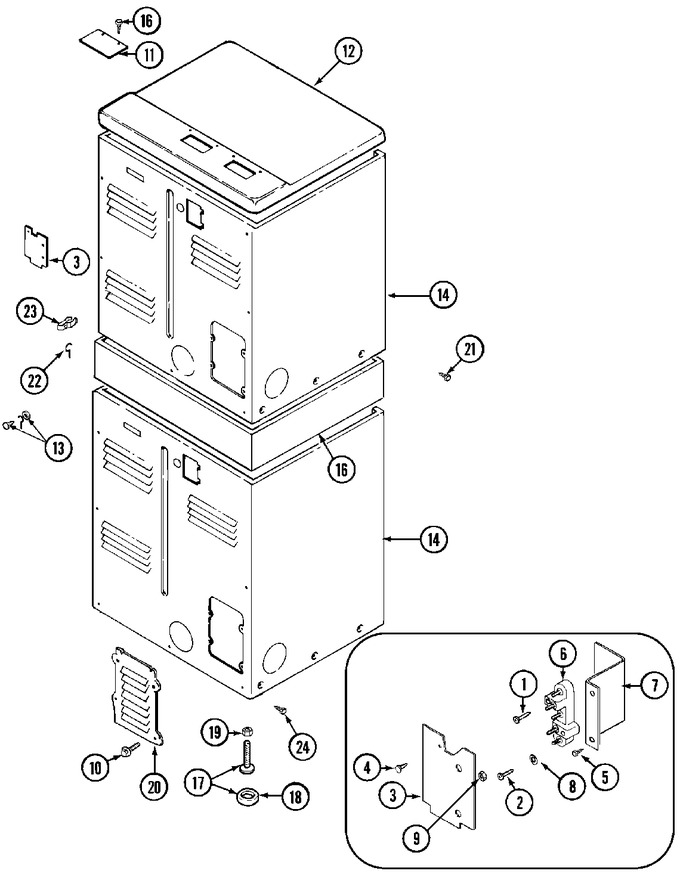

01 - Control Panel & Support Assembly


02 - Front View


03 - Door


04 - Rear


05 - Tumbler


06 - Heater


07 - Motor Drive


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Screw, Ground Strap	A0	Appelez-nous	-
002	Y310632		Screw, Terminal Block	A0	Appelez-nous	-
003	Y312905		Cover, Terminal	A0	Appelez-nous	-
004	Y313561		Screw, Terminal Cover	A0			$ 5.27
005	W11164114		Screw, Terminal Bracket   (Replaces: Y312209)	A0			$ 3.76
006	400008		Block, Terminal	A0			$ 29.20
007	Y312904		Bracket, Terminal	A0	Appelez-nous	-
008	WP311093		Washer, Brass   (Replaces: 311093)	A0			$ 7.25
008	910181		Lock Washer	A0	Appelez-nous	-
008	Y311270		Washer, Terminal Block	A0			$ 8.75
009	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
010	WP90767		Screw, Access Cover   (Replaces: 211294)	A0		Immediately	$ 7.04
010	WP90767		Screw, Access Cover   (Replaces: Y313559)	A0		Immediately	$ 7.04
011	NLA		Plate, Top Cover	A0	Appelez-nous	-
012	33001165		Top Cover Assembly (wht)	A0	Appelez-nous	-
013	NLA		Screw & Washer Assembly	A0	Appelez-nous	-
014	NLA		Cabinet (lwr-wht)	A0	Appelez-nous	-
014	Y310632		Screw, Cabinet	A0	Appelez-nous	-
015	NLA		Support Assembly (wht)	A0	Appelez-nous	-
016	WP90767		Screw, Top Cover Plate   (Replaces: Y313559)	A0		Immediately	$ 7.04
017	22003428		Leg, Adjustable (w/nut)   (Replaces: Y302699)	A0		Immediately	$ 14.41
018	WP210684		Foot, Rubber   (Replaces: 210684)	A0		Immediately	$ 14.09
019	WP210385		Nut, Lock   (Replaces: 210385)	A0			$ 6.26
020	Y312951		Cover, Access	A0	Appelez-nous	-
021	NLA		Screw, Support	A0	Appelez-nous	-
021	Y310632		Screw, Support	A0	Appelez-nous	-
022	311155		Ground Wire	A0			$ 8.77
023	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
023	313122		Screw, Clamp	A0	Appelez-nous	-
024	213007		Screw, Cabinet Side	A0			$ 10.99

    View Diagram in Separate Window       Print Part List
