SELECT A DIAGRAM

01 - Control Panel & Support Assembly


02 - Front View


03 - Door


04 - Rear


05 - Tumbler


06 - Heater

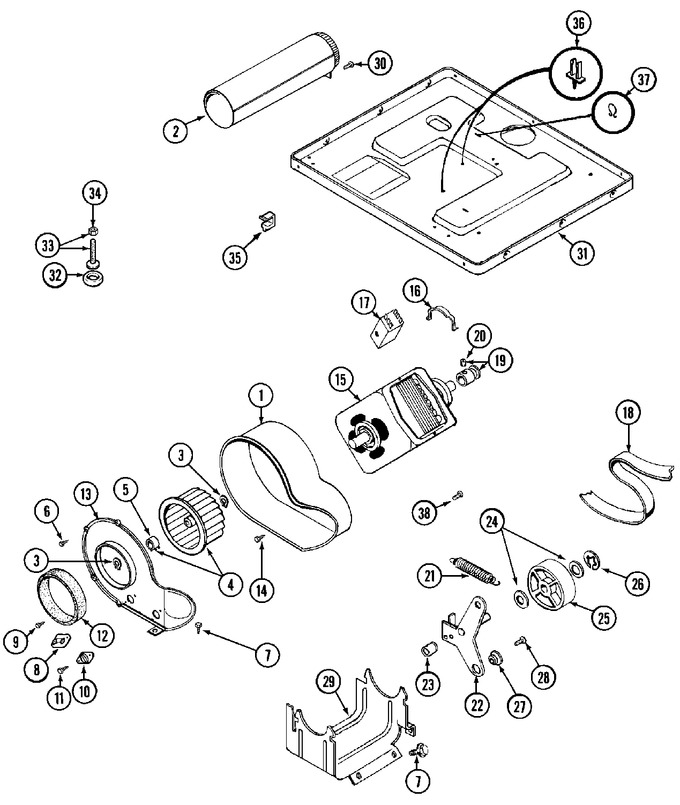

07 - Motor Drive


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y312893		Housing, Blower	A0			$ 55.67
002	Y303442		Exhaust Duct Assembly	A0	Appelez-nous	-
003	WP9703438		Ring, Retaining   (Replaces: 410233)	A0		Immediately	$ 3.81
004	Y303836		Impeller, Blower (w/clamp)	A0		Immediately	$ 32.35
005	WP312967		Clamp, Blower Wheel   (Replaces: 312967)	A0		Immediately	$ 10.68
006	WPW10116751		Screw, Housing Cover   (Replaces: Y312961)	A0			$ 6.74
007	Y313561		Screw, Housing Cover	A0			$ 5.27
008	WP694674		Thermostat, Cycling (140 Deg.)   (Replaces: 303392)	A0		Immediately	$ 45.46
008	306967		Thermostat, Cycling (155 Deg.)	A0			$ 56.76
008	33001306		Wire Harness, Thermostat	A0	Appelez-nous	-
009	WP90767		Screw, Thermostat   (Replaces: 211294)	A0		Immediately	$ 7.04
010	WP306604		Cut-off, Thermal   (Replaces: 306604)	A0		Immediately	$ 37.77
011	NLA		Screw, Thermal Cut-off	A0	Appelez-nous	-
012	WPY312901		Seal, Housing Cover   (Replaces: Y312901)	A0			$ 60.70
013	314778		Cover, Blower Housing	A0	Appelez-nous	-
014	314818		Screw, Blower Housing	A0	Appelez-nous	-
015	Y304656		Motor	A0	Appelez-nous	-
016	WPY015825		Clip, Motor   (Replaces: Y015825)	A0			$ 21.03
017	306207		(prod. No. 303358-8 & 303358-9)		Appelez-nous	-
017	NLA		Switch, Motor External Start	A0	Appelez-nous	-
017	Y303877		Switch, Motor External Start (prod. No. 303358-2, 303358-4	A0	Appelez-nous	-
017	Y303879		Switch, Motor External Start (prod. No. 303358 & 303358-6)	A0	Appelez-nous	-
018	WPY312959		Belt, Tumbler   (Replaces: Y312959)	A0		Immediately	$ 30.66
019	305186		Pulley, Motor (w/set Screw)	A0	Appelez-nous	-
020	Y053241		Screw, Set	A0	Appelez-nous	-
021	Y303945		Idler Spring Assembly	A0	Appelez-nous	-
022	WP6-3033630		Idler Arm & Shaft Assembly   (Replaces: Y303363)	A0		Immediately	$ 68.43
023	WPW10116756		Spacer, Idler Bracket   (Replaces: Y313582)	A0			$ 43.70
024	WPY312527		Washer, Idler Shaft   (Replaces: Y312527)	A0		Immediately	$ 10.01
025	WP6-3037050		Pulley, Idler (w/bearing)   (Replaces: Y303705)	A0		Immediately	$ 19.89
026	WP354987		Retaining Ring, Idler Shaft   (Replaces: 312958)	A0		Immediately	$ 10.58
027	WP315772		Sleeve, Idler Arm   (Replaces: Y312894)	A0		Immediately	$ 10.39
028	WPY014874		Screw, Idler Arm & Sleeve   (Replaces: Y014874)	A0			$ 6.98
029	NLA		Support, Motor	A0	Appelez-nous	-
030	Y310632		Screw, Exhaust Duct	A0	Appelez-nous	-
031	306530		Base Assembly (lower)	A0	Appelez-nous	-
031	Y307482		(upper)	A0	Appelez-nous	-
032	WP210684		Foot, Rubber   (Replaces: 210684)	A0		Immediately	$ 14.09
033	22003428		Leg, Adjustable (w/nut)---s   (Replaces: Y302699)	A0		Immediately	$ 14.41
034	WP210385		Nut, Lock   (Replaces: 210385)	A0			$ 6.26
035	Y310376		Clip, Wire Harness	A0	Appelez-nous	-
036	315471		Retainer, Wire Harness	A0	Appelez-nous	-
037	410490		Spring, Wire Harness	A0	Appelez-nous	-
038	WPW10116751		Screw, Spacer   (Replaces: Y312961)	A0			$ 6.74

    View Diagram in Separate Window       Print Part List
