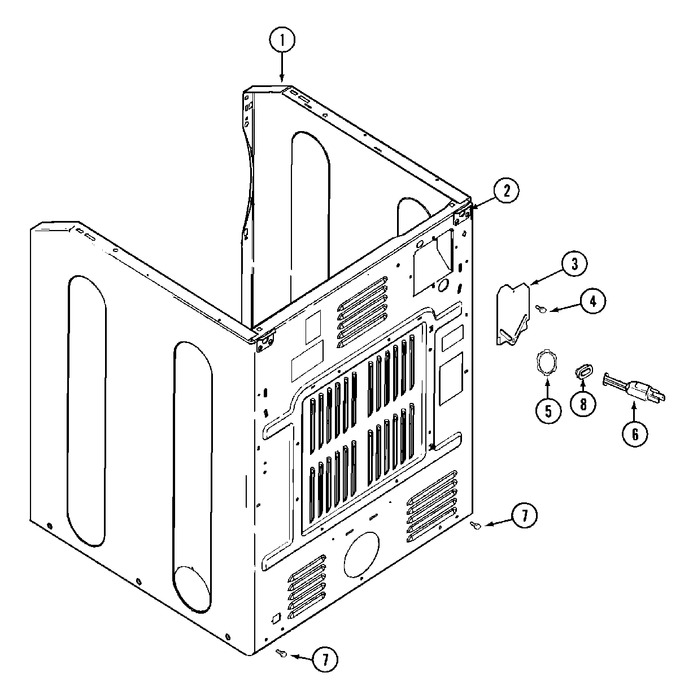

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003639		Cabinet Assy. (wht As Pk)	38	Appelez-nous	-
001	33002626		Cabinet, Assy. (wht-as Pk)	36	Appelez-nous	-
001	NLA		Cabinet (wht)	10	Appelez-nous	-
002	W11573574		Screw, Hinge   (Replaces: 22001995)	36		Immediately	$ 12.62
002	22003367		Hinge, Plastic	36	Appelez-nous	-
002	NLA		Bracket, Cabinet Hinge	10	Appelez-nous	-
003	33001795		Cover, Terminal Block	10	Appelez-nous	-
004	W11573574		Screw, Terminal Block Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
005	33001425		Locknut, Eared For Canadian	10	Appelez-nous	-
006	22001178		Cord, Power (gas Model)	10	Appelez-nous	-
006	305168		Cord, Power (canada)	10	Appelez-nous	-
007	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
008	33002053		Grommet, Cord	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
