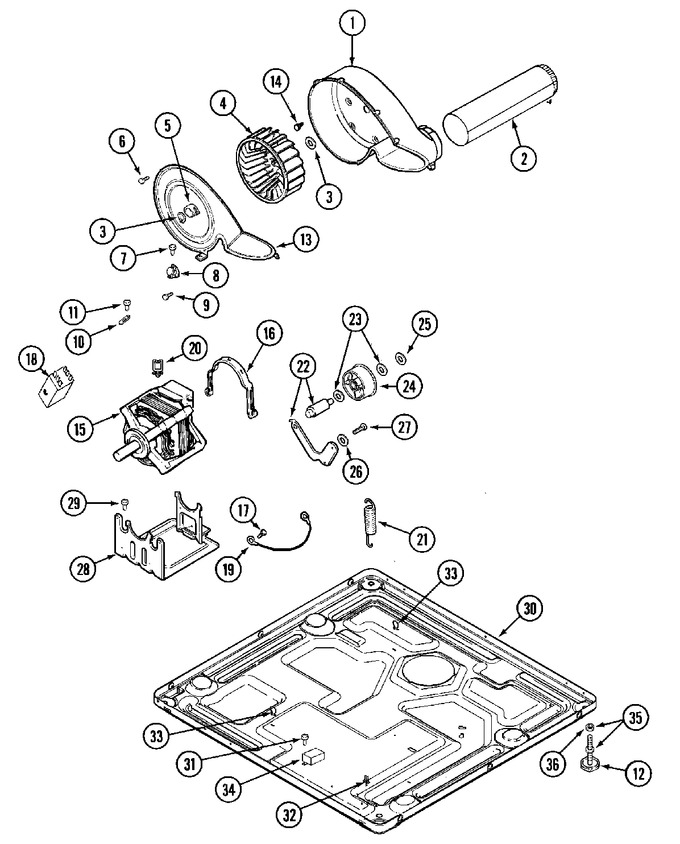

06 - Motor Drive
07 - Wiring Information
08 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP33001789 | Housing, Blower (Replaces: 33001789) | 10 |
|
$ 128.00 | ||||
| 002 | W11573574 | Screw, Exhaust Duct Assembly (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 002 | 33001800 | Duct Assy., Exhaust | 10 |
|
- | ||||
| 003 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 3.81 | |||
| 004 | 33001790 | Wheel, Blower | 10 |
|
Immediately | $ 44.73 | |||
| 005 | WP312967 | Clamp, Blower Housing (Replaces: 312967) | 10 |
|
Immediately | $ 10.68 | |||
| 006 | WP33002917 | Screw, Housing Cover (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 007 | Y313561 | Screw, Housing Cover | 10 |
|
$ 5.27 | ||||
| 008 | WP694674 | Thermostat, Cycling (140 Deg.) (Replaces: 303392) | 10 |
|
Immediately | $ 45.46 | |||
| 008 | WP33303391 | Thermostat, Cycling (Replaces: 33303391) | 10 |
|
$ 127.00 | ||||
| 009 | WP489128 | Screw, Thermostat (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 010 | WP33001762 | Fuse, Thermal (w` Bracket) (Replaces: 33001762) | 10 |
|
Immediately | $ 49.84 | |||
| 011 | NLA | Screw, Thermal Cut-off | 10 |
|
- | ||||
| 012 | Y314137 | Foot, Rubber | 10 |
|
$ 14.08 | ||||
| 013 | 33001796 | Cover, Blower Housing | 10 |
|
- | ||||
| 014 | 314818 | Screw, Blower Housing | 10 |
|
- | ||||
| 015 | W10410997 | Motor (w/v Pulley) (Replaces: 33001853) | 10 |
|
Immediately | $ 165.38 | |||
| 015 | W10410997 | Motor (w/pulley) (Replaces: 33002237) | 23 |
|
Immediately | $ 165.38 | |||
| 015 | W10410997 | Motor (120v 60hz) (Replaces: 33002462) | 26 |
|
Immediately | $ 165.38 | |||
| 015 | W10410997 | Motor (Replaces: 33002478) | 28 |
|
Immediately | $ 165.38 | |||
| 016 | WPY015825 | Clip, Motor (Replaces: Y015825) | 10 |
|
$ 21.03 | ||||
| 017 | WP488234 | Screw, Ground Wire (Replaces: 910343) | 10 |
|
$ 6.07 | ||||
| 018 | W10410997 | Switch, Motor (Replaces: 33001854) | 10 |
|
Immediately | $ 165.38 | |||
| 019 | 901220 | Wire, Ground | 10 |
|
- | ||||
| 020 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 021 | 33002459 | Spring, Idler (Replaces: 33001754) | 10 |
|
$ 6.94 | ||||
| 021 | 33002157 | Grommet | 10 |
|
- | ||||
| 021 | 33002459 | Spring, Idler Spring & Plug Kit 33002459 (Replaces: 33002460) | 25 |
|
$ 6.94 | ||||
| 021 | 33002461 | Plug For Spring | 25 |
|
- | ||||
| 022 | WP6-3705180 | Idler Arm & Shaft Assy. (Replaces: 33001782) | 10 |
|
Immediately | $ 44.32 | |||
| 023 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 10 |
|
Immediately | $ 10.01 | |||
| 024 | WP6-3700340 | Bearing, Idler Assembly (Replaces: 33001783) | 10 |
|
Immediately | $ 24.98 | |||
| 025 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) | 10 |
|
Immediately | $ 10.58 | |||
| 026 | WP315772 | Sleeve, Idler Arm (Replaces: 315772) | 10 |
|
Immediately | $ 10.39 | |||
| 027 | WPY014874 | Screw, Idler Arm & Sleeve (Replaces: Y014874) | 10 |
|
$ 6.98 | ||||
| 028 | Y313561 | Screw, Support | 25 |
|
$ 5.27 | ||||
| 028 | 33001752 | Support, Motor | 10 |
|
- | ||||
| 028 | 33002466 | Support, Motor | 25 |
|
- | ||||
| 029 | Y313561 | Screw, Motor & Blower | 10 |
|
$ 5.27 | ||||
| 030 | 33002622 | Base, (lwr) | 36 |
|
- | ||||
| 030 | NLA | Base | 10 |
|
- | ||||
| 031 | WP3177991 | Screw, Relay & Base (Replaces: 22001078) | 10 |
|
Immediately | $ 6.47 | |||
| 032 | 315471 | Retainer, Wire | 10 |
|
- | ||||
| 033 | 410490 | Spring, Wire Harness | 10 |
|
- | ||||
| 034 | 306199 | Relay, Heater | 10 |
|
$ 42.40 | ||||
| 035 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 10 |
|
$ 7.16 | ||||
| 036 | WP62739 | Nut, Leg (Replaces: Y052740) | 10 |
|
$ 6.85 |
