01 - Control Panel
02 - Control Center
03 - Door
04 - Heater
05 - Wiring Information
06 - Tumbler
07 - Cabinet-rear
08 - Motor Drive
09 - Cabinet-front
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

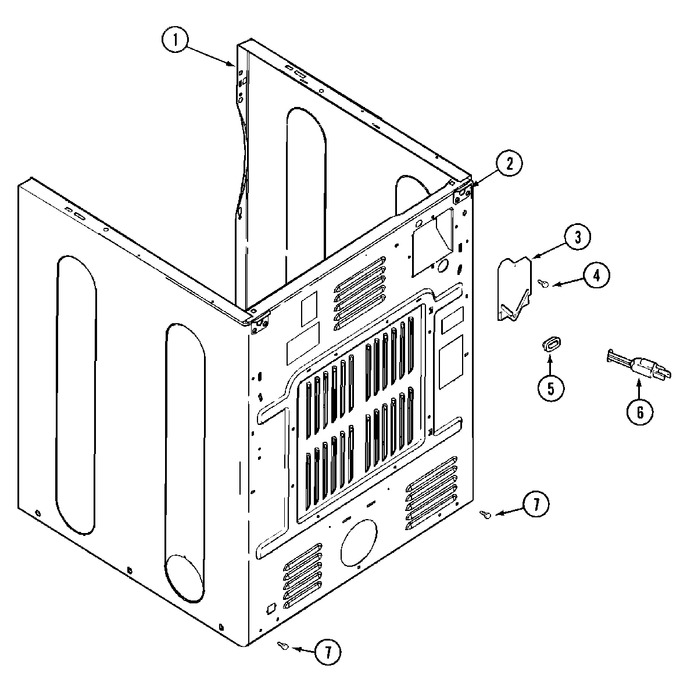

| 001 | NLA | Cabinet (alm)----na | 23 |
|
- | ||||
| 002 | NLA | Bracket, Cabinet Hinge | 23 |
|
- | ||||
| 003 | 33001795 | Cover, Terminal Block | 23 |
|
- | ||||
| 004 | W11573574 | Screw, Terminal Block Cover (Replaces: 22001995) | 23 |
|
Immediately | $ 12.62 | |||
| 004 | WPW10296816 | Screw, Terminal Block Ground (Replaces: 33002137) | 23 |
|
$ 6.77 | ||||
| 005 | 22002532 | Grommet, Cord | 23 |
|
- | ||||
| 006 | NLA | Cord, Power | 23 |
|
- | ||||
| 007 | W11573574 | Screw, Cabinet (Replaces: 22001995) | 23 |
|
Immediately | $ 12.62 |
