SELECT A DIAGRAM
New Model Search:

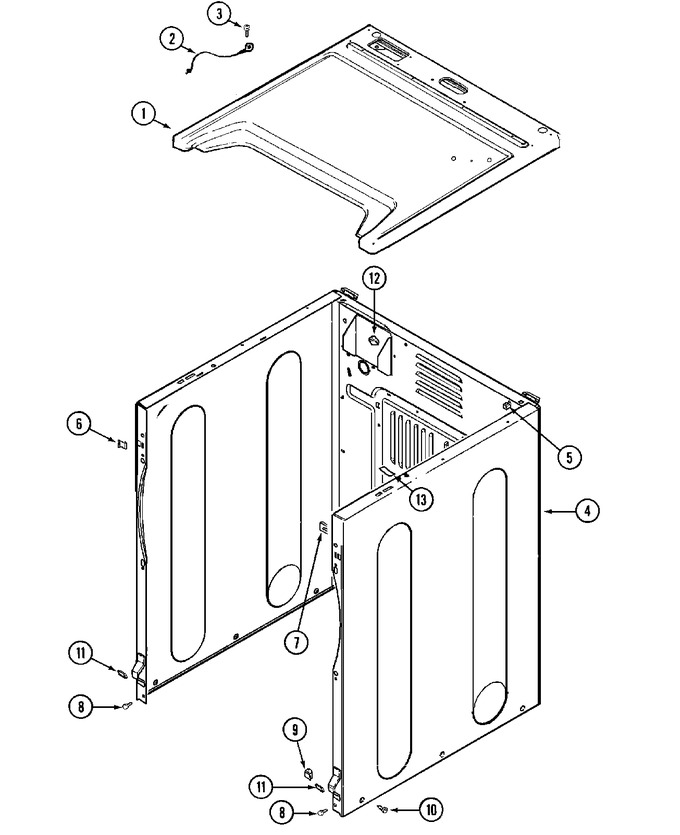

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Cover, Top (alm)----na | 10 |
|
- | ||||
| 002 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 003 | WP489128 | Screw, Ground Wire (Replaces: 210186) | 10 |
|
$ 9.79 | ||||
| 004 | NLA | Cabinet (alm) | 10 |
|
- | ||||
| 005 | 310933 | Fastener | 10 |
|
- | ||||
| 006 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 007 | 213280 | Retainer, Shroud | 10 |
|
- | ||||
| 008 | W11573574 | Screw, Cabinet (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 009 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 010 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 011 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 012 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 013 | 33001836 | Strap, Top Cover Support | 10 |
|
- |
