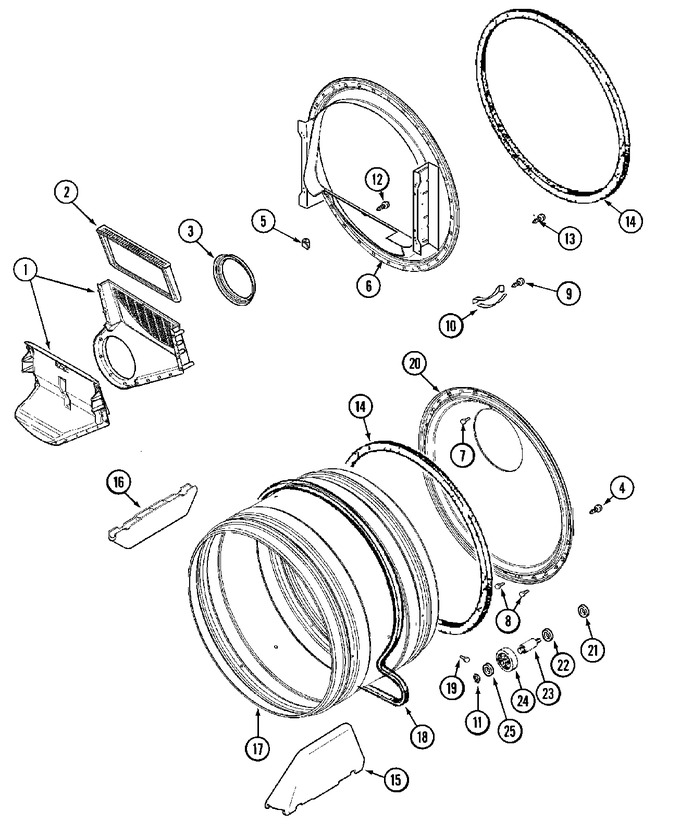

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 33001799 | Outlet Duct Assembly | 23 |
|
$ 81.40 | ||||
| 002 | WP33001808 | Filter, Lint (Replaces: 33001808) | 23 |
|
Immediately | $ 54.12 | |||
| 003 | 33001758 | Seal, Blower | 23 |
|
- | ||||
| 004 | 33002190 | Screw (no.10-3/8``) | 23 |
|
- | ||||
| 005 | Y310376 | Clip, Wire Harness | 23 |
|
- | ||||
| 006 | 33001802 | Front, Tumbler (w/seal) (incl. Sensor/ Light Assy) | 23 |
|
$ 134.30 | ||||
| 007 | 210932 | Screw, Inlet Duct | 23 |
|
- | ||||
| 008 | WP489128 | Screw, Inlet Duct (Replaces: 22001996) | 23 |
|
$ 9.79 | ||||
| 009 | WP210720 | Rivet, Tumbler (Replaces: 210720) | 23 |
|
$ 12.14 | ||||
| 010 | 306508 | Tumbler Bearing Kit ----w | 23 |
|
Immediately | $ 20.77 | |||
| 011 | WP9703438 | Ring, Retaining (Replaces: 410233) | 23 |
|
Immediately | $ 3.81 | |||
| 012 | NLA | Screw, Outlet Duct (phillips) | 23 |
|
- | ||||
| 013 | WP33002917 | Screw, Duct To Tumbler (hex) (Replaces: 33001855) | 23 |
|
Immediately | $ 6.90 | |||
| 014 | WP33001807 | Seal, Tumbler (Replaces: 33001807) | 23 |
|
Immediately | $ 21.39 | |||
| 015 | WP33002032 | Baffle (tall) (Replaces: 33001756) | 23 |
|
Immediately | $ 37.95 | |||
| 016 | WP33001755 | Baffle (short) (Replaces: 33001755) | 23 |
|
Immediately | $ 30.85 | |||
| 017 | 33001889 | Tumbler | 23 |
|
$ 325.04 | ||||
| 018 | WP33002535 | Belt, Tumbler (Replaces: 33001777) | 23 |
|
Immediately | $ 30.78 | |||
| 019 | 33001788 | Screw, Baffle | 23 |
|
- | ||||
| 020 | 33001801 | Back, Tumbler (w/seal) | 23 |
|
$ 162.40 | ||||
| 021 | WP33001443 | Nut, Hex (roller Shaft) (Replaces: 33001443) | 23 |
|
$ 7.15 | ||||
| 022 | WP312535 | Washer,spring(roller Shaft)--s (Replaces: Y313347) | 23 |
|
Immediately | $ 10.25 | |||
| 023 | Y312948 | Shaft, Tumbler Roller----c | 23 |
|
- | ||||
| 024 | 12001541 | Roller (w/bearing) (Replaces: Y303373) | 23 |
|
Immediately | $ 27.92 | |||
| 025 | WP312535 | Washer, Roller Shaft (Replaces: 312535) | 23 |
|
Immediately | $ 10.25 |
