SELECT A DIAGRAM

01 - Control Center


02 - Cabinet-front


03 - Door


04 - Cabinet-rear


05 - Control Panel (bsq)


06 - Control Center (bsq)


07 - Cabinet-front (bsq)


08 - Door (bsq)


09 - Heater (bsq)


10 - Tumbler (bisq)


11 - Motor Drive


12 - Motor Drive (mde16pdayq)

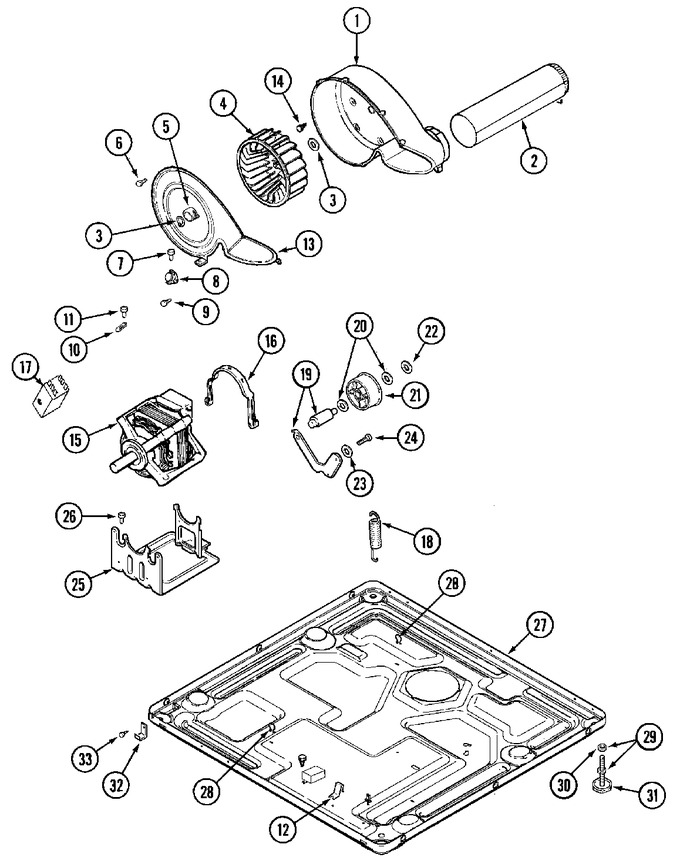

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP33001789		Housing, Blower   (Replaces: 33001789)	23			$ 128.00
002	W11573574		Screw, Exhaust Duct Assembly   (Replaces: 22001995)	23		Immediately	$ 12.62
002	33001800		Duct Assy., Exhaust	23	Appelez-nous	-
003	WP9703438		Ring, Retaining   (Replaces: 410233)	23		Immediately	$ 3.81
004	33001790		Wheel, Blower	23		Immediately	$ 44.73
004	WP33002795		Motor, Drive 60hz   (Replaces: 33002795)	68		Immediately	$ 229.65
005	WP312967		Clamp, Blower Housing   (Replaces: 312967)	23		Immediately	$ 10.68
006	WP33002917		Screw, Housing Cover   (Replaces: 33001855)	23		Immediately	$ 6.90
007	Y313561		Screw, Housing Cover	23			$ 5.27
008	WP3387137		Thermostat,(elec) Multi-temp   (Replaces: 306911)	23			$ 122.74
008	WP694674		Thermostat, Ultra Care   (Replaces: 33002409)	23		Immediately	$ 45.46
009	WP489128		Screw, Thermostat   (Replaces: 22001996)	23			$ 9.79
010	WP33001762		Fuse, Thermal (w` Bracket)   (Replaces: 33001762)	23		Immediately	$ 49.84
011	NLA		Screw, Thermal Cut-off	23	Appelez-nous	-
012	22002244		Clip, Grounding	23	Appelez-nous	-
013	33002412		Cover, Blower Housing	23	Appelez-nous	-
014	314818		Screw, Blower Housing	23	Appelez-nous	-
015	22003692		Timer Access Door Assy(bisque)	40	Appelez-nous	-
015	W10410997		Motor (w/pulley)   (Replaces: 33002237)	23		Immediately	$ 165.38
015	W10410997		Motor (120v 60hz)   (Replaces: 33002462)	26		Immediately	$ 165.38
015	W10410997		Motor   (Replaces: 33002478)	30		Immediately	$ 165.38
015	WP33002797		Wheel, Blower   (Replaces: 33002797)	68		Immediately	$ 93.13
016	WPY015825		Clip, Motor   (Replaces: Y015825)	23			$ 21.03
017	W10410997		Switch, Motor   (Replaces: 33001854)	23		Immediately	$ 165.38
018	33002459		Spring, Idler   (Replaces: 33001754)	23			$ 6.94
018	33002157		Grommet	10	Appelez-nous	-
018	33002459		Spring, Idler Spring & Plug Kit 33002459   (Replaces: 33002460)	25			$ 6.94
018	33002461		Plug For Spring	25	Appelez-nous	-
019	WP6-3705180		Idler Arm & Shaft Assy.   (Replaces: 33001840)	23		Immediately	$ 44.32
020	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: Y312527)	23		Immediately	$ 10.01
021	WP6-3700340		Bearing, Idler Assembly   (Replaces: 33001783)	23		Immediately	$ 24.98
022	WP354987		Retaining Ring, Idler Shaft   (Replaces: 312958)	23		Immediately	$ 10.58
023	WP315772		Sleeve, Idler Arm   (Replaces: 315772)	23		Immediately	$ 10.39
024	WPY014874		Screw   (Replaces: Y014874)	23			$ 6.98
025	Y313561		Screw, Mount To Base	25			$ 5.27
025	33001752		Support, Motor	23	Appelez-nous	-
025	33002466		Support, Motor	25	Appelez-nous	-
026	Y313561		Screw, Motor & Blower	23			$ 5.27
027	33002622		Base, (lwr)	36	Appelez-nous	-
027	NLA		Base	23	Appelez-nous	-
028	410490		Spring, Wire Harness	23	Appelez-nous	-
029	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	23			$ 7.16
030	WP62739		Nut   (Replaces: Y052740)	23			$ 6.85
031	Y314137		Foot, Rubber	23			$ 14.08
032	22002239		Clip, Lower Front Panel	23			$ 5.84
033	Y310632		Screw, Clip	23	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
