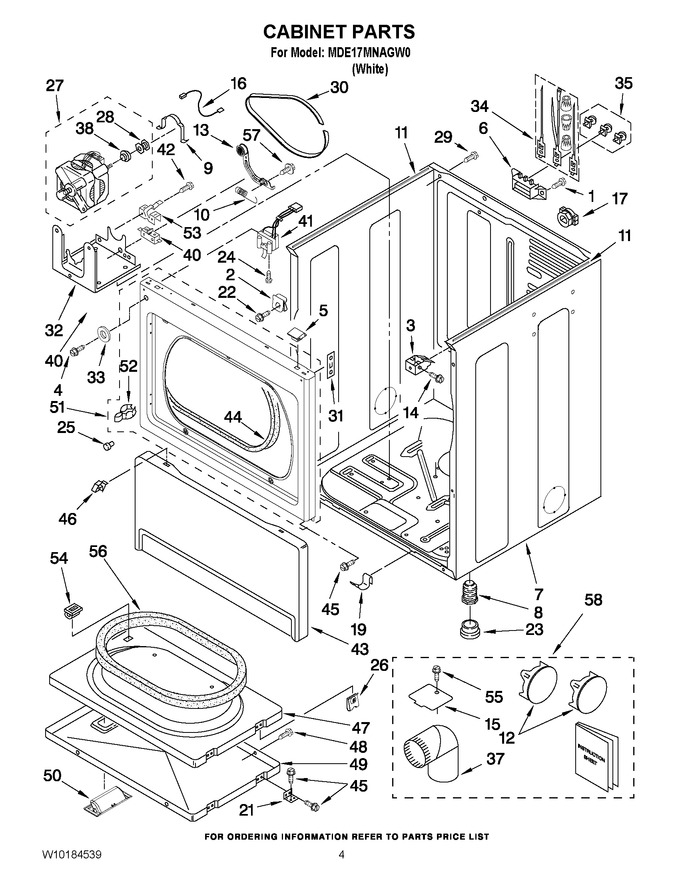

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
2	WPW10131123		Nut, No.8 U Type   (Replaces: W10131123)				$ 6.94
3	3391846		Clip, Front Panel (2)				$ 19.04
4	WP3400077		Screw, 10-16 X 1/2   (Replaces: 3400077)				$ 6.25
5	WP345670		Lock, Top   (Replaces: 345670)			Immediately	$ 6.93
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 20.72
7	W11417441		Cabinet   (Replaces: 8310656)				$ 377.29
8	49621		Foot, Dryer (plastic)   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.05
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 22.11
11	WP8318396A		Foam-seal   (Replaces: 8318396)				$ 34.04
12	W10470674		Plug, Multivent   (Replaces: 697750)			Immediately	$ 68.99
13	W10837240		Idler Assembly   (Replaces: W10118754)			Immediately	$ 32.20
14	W10223793		Screw, 10-16 X 1		Appelez-nous	-
15	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.06
16	3394081		Wire, Belt Switch				$ 37.57
17	W11704629		Clip, Strain Relief   (Replaces: 8316644)		Appelez-nous	-
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 7.42
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 73.27
22	WPW10131119		Screw, 8-18 X 5/16   (Replaces: W10131119)				$ 6.26
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.04
24	W10080540		Screw, 6-20 X 7/8		Appelez-nous	-
25	693152		Bumper				$ 9.86
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10416573		Motor Assembly (50 Hz.)   (Replaces: 3404470)				$ 214.97
28	3402548		Pulley		Appelez-nous	-
29	W10850756		Screw, 10-32 X 1/2   (Replaces: 8533974)				$ 6.98
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 39.60
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 10.00
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 120.23
33	3391948		Washer		Appelez-nous	-
34	279318		Terminal, Brass & Tinned (3) (includes Ill. 35)			Immediately	$ 90.89
35	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 42.63
37	279731		4`` - 90 Elbow		Appelez-nous	-
38	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 119.21
40	WP8318457		Switch-belt   (Replaces: 8318457)				$ 37.88
41	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 50.08
42	W10118188		Screw		Appelez-nous	-
43	WP3406797		Panel, Toe   (Replaces: 697215)				$ 214.50
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 6.81
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: 3392563)				$ 258.32
48	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 6.47
49	W11663440		Door, Front   (Replaces: 3387872)				$ 233.43
50	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 68.18
51	3393081		Front Panel		Appelez-nous	-
52	W10080240		Strike, Door		Appelez-nous	-
53	W10854043		Lever-switch   (Replaces: W10083220)				$ 26.10
54	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.00
55	WP489464		Screw, 8-18 X 1/2   (Replaces: W10080700)			Immediately	$ 7.05
56	WP3390735		Seal, Door   (Replaces: 3390735)				$ 117.54
57	W10080670		Screw		Appelez-nous	-
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 68.99
