SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

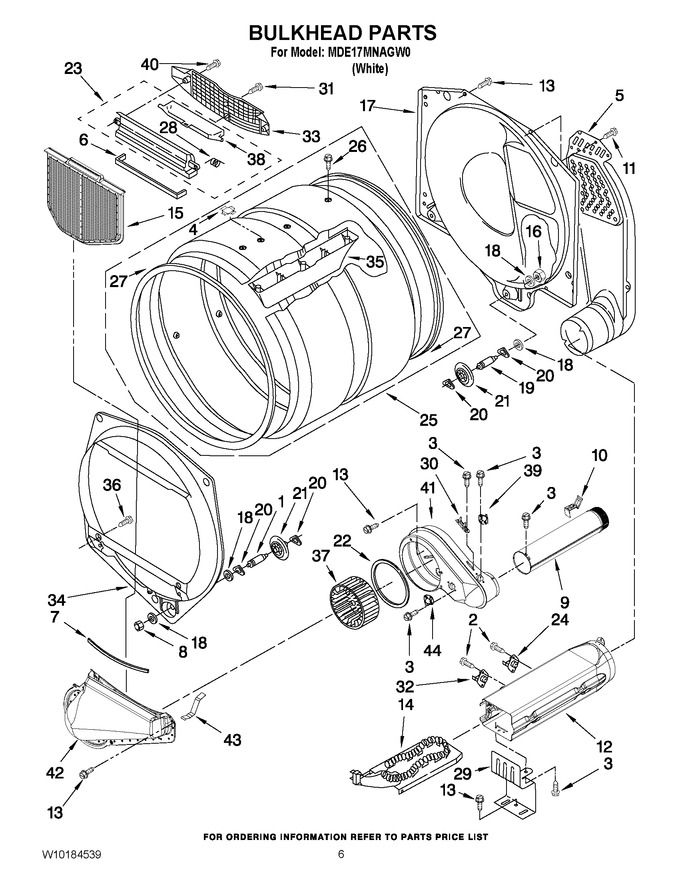

03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 55.99 | ||||
| 2 | W10080280 | Screw, 8-18 X 3/8 |
|
- | |||||
| 3 | W10080820 | Screw, 8-18 X 5/16 |
|
- | |||||
| 4 | 8066086 | Drum Hole Plug |
|
$ 9.68 | |||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 280.55 | |||||
| 6 | WP697813 | Foam-seal (Replaces: 697813) |
|
Immediately | $ 7.17 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.17 | ||||
| 8 | W11812294 | Nut 3/8 X 16 (r.h.) (Replaces: W10080210) |
|
$ 10.94 | |||||
| 9 | W10121167 | Exhaust Pipe |
|
- | |||||
| 10 | W11684573 | Clip (Replaces: 8572105) |
|
$ 7.00 | |||||
| 11 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 12 | W10802681 | Box, Heater (Replaces: 3392537) |
|
Immediately | $ 116.70 | ||||
| 13 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10080700) |
|
Immediately | $ 7.05 | ||||
| 14 | WP3387749 | Element, Heater (Replaces: 3387749) |
|
Immediately | $ 281.64 | ||||
| 15 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 60.44 | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10080190) |
|
Immediately | $ 7.64 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 315.10 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 12.63 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | WP697770 | Foam-seal (Replaces: 697770) |
|
Immediately | $ 7.09 | ||||
| 23 | W11197085 | Housing, Outlet (Replaces: W10181927) |
|
$ 38.57 | |||||
| 24 | W10154212 | Cut-off, Thermal (includes Illus. 32) (Replaces: W10141623) |
|
$ 105.14 | |||||
| 25 | W10545923 | Drum Complete (Replaces: 8528998) |
|
$ 393.08 | |||||
| 26 | W10853898 | Screw, 11-16 X 3/4 (Replaces: W10219342) |
|
Immediately | $ 6.98 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 63.74 | ||||
| 28 | WP3394986 | Spring, Lint Screen (Replaces: 3394986) |
|
$ 76.13 | |||||
| 29 | 8066099 | Bracket, Heater Box |
|
$ 21.92 | |||||
| 30 | WPW10167627 | Thermal Limiter (Replaces: W10167627) |
|
$ 88.69 | |||||
| 31 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.01 | ||||
| 32 | WPW10168175 | Thermostat 250° F (Replaces: W10168175) |
|
$ 111.46 | |||||
| 33 | W11086603 | Grill, Outlet (Replaces: W10181926) |
|
Immediately | $ 31.63 | ||||
| 34 | WP697557 | Bulkhead, Front (Replaces: 697557) |
|
$ 187.23 | |||||
| 35 | W11782150 | Baffle, Drum (3) (Replaces: 697693) |
|
Immediately | $ 81.92 | ||||
| 36 | W10080590 | Screw, 10-16 X 1/2 |
|
- | |||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10168564) |
|
Immediately | $ 108.30 | ||||
| 38 | W10181925 | Door, Lint Screen |
|
$ 16.25 | |||||
| 39 | WPW10194158 | Thermostat 140° F Cycling (Replaces: W10194158) |
|
$ 71.32 | |||||
| 40 | W10080640 | Screw, 10-16 X 3/4 |
|
- | |||||
| 41 | WP8544363 | Housing, Blower (Replaces: W10151271) |
|
$ 137.37 | |||||
| 42 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 186.41 | |||||
| 43 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 7.35 | |||||
| 44 | WPW10206200 | Thermostat 155º F Electronic (Replaces: W10206200) |
|
$ 114.32 |
