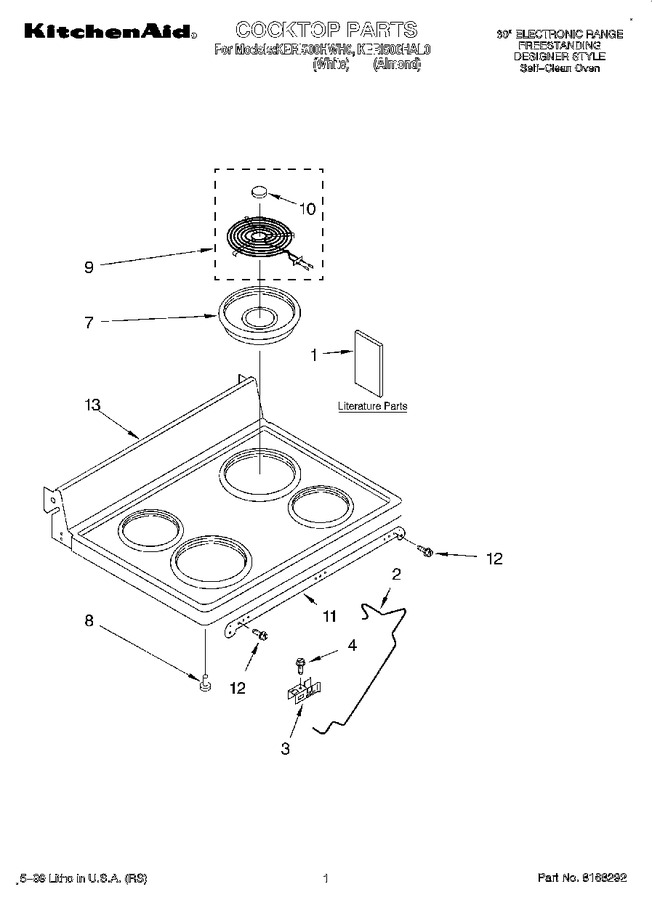

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Rear Chassis


06 - Oven, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752387		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT9753844		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9753984		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
2	9751538		Cooktop Rod		Appelez-nous	-
3	9781324		Receptacle Clip		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4   (Replaces: 9750891)				$ 6.84
7	WPW10290350		Drip Bowl (8``)   (Replaces: 3169205)			Immediately	$ 15.25
7	W10290353RW		Drip Bowl (6``)   (Replaces: 3169204)			Immediately	$ 19.27
8	238614		Bumper (2) White   (Replaces: 9750969)				$ 72.68
9	PS26-4BK		Element, Surface (coil, 8`` Lf-rr)   (Replaces: 9781325)			Immediately	$ 40.46
9	9781327		Element, Surface (coil, 6`` Lr (accu-simmer))		Appelez-nous	-
9	WPW10259868		Element, Surface (coil, 6`` Rf)   (Replaces: 9781326)			Immediately	$ 112.28
10	4211952		Medallion, (4)		Appelez-nous	-
11	9780585		Guard, Wire				$ 35.21
12	9780270		Screw, 8-18 X 3/8		Appelez-nous	-
13	9750160GT		Cooktop, Coil (almond)		Appelez-nous	-
13	9750160GW		Cooktop, Coil (white)		Appelez-nous	-
