01 - Cooktop, Literature

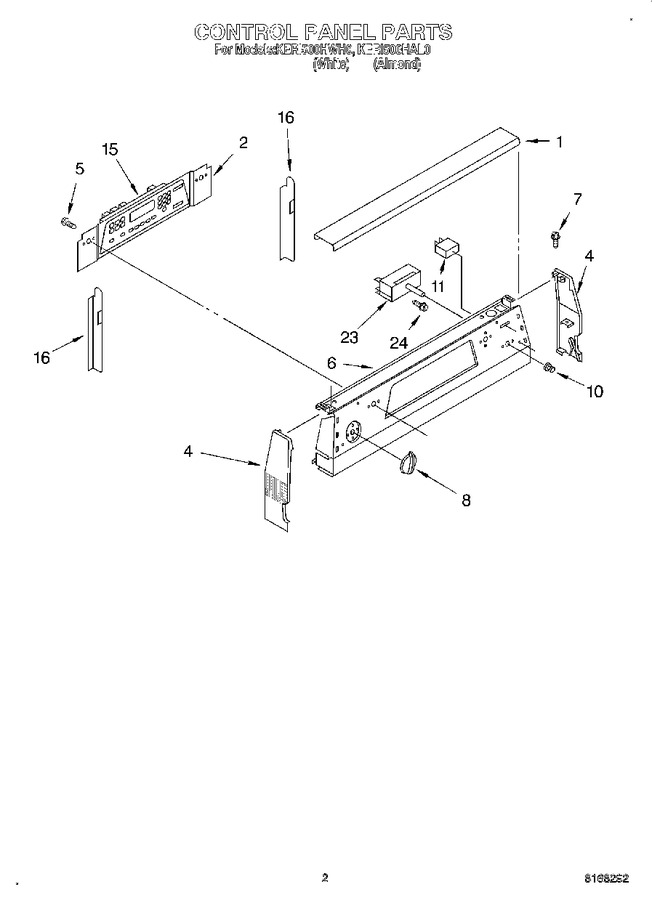

02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Rear Chassis
06 - Oven, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9753156PW | Lamp Cover (white) |
|
- | |||||
| 1 | 9753156PT | Lamp Cover (almond) |
|
- | |||||
| 2 | 9753690 | Bracket, Timer |
|
- | |||||
| 4 | 9750367FT | End Cap (right Hand) (almond) |
|
- | |||||
| 4 | 9750366FW | End Cap (left Hand) (white) |
|
- | |||||
| 4 | 9750366FT | End Cap (left Hand) (almond) |
|
- | |||||
| 4 | 9750367FW | End Cap (right Hand) (white) |
|
- | |||||
| 5 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 6 | 9753723PT | Panel, Control (almond) |
|
- | |||||
| 6 | 9753723PW | Panel, Control (white) |
|
- | |||||
| 7 | 9780852 | Screw, 8-18 X 3/8 |
|
- | |||||
| 7 | 9752639 | Insulation |
|
- | |||||
| 8 | 9750372FT | Knobs, Control (almond) |
|
- | |||||
| 8 | WP9750372FW | Knobs, Control (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 10 | WP9750343 | Indicator Lens (Replaces: 9752589) |
|
Immediately | $ 5.14 | ||||
| 11 | 9753422 | Light Module |
|
- | |||||
| 15 | 9753636CW | Oven Control Assembly (white) |
|
- | |||||
| 15 | 9753636CT | Oven Control Assembly (almond) |
|
- | |||||
| 16 | 9780655 | Brace, Control Pnl |
|
- | |||||
| 23 | WP9750641 | Infinite Switch (2400w, Lf-rr) (Replaces: 9750641) |
|
Immediately | $ 92.72 | ||||
| 23 | WP9750638 | Infinite Switch (1400w, Lr-rf) (Replaces: 9750638) |
|
Immediately | $ 102.50 | ||||
| 24 | WP3400882 | Screw, 8-32 X 7/32 (Replaces: 3400816) |
|
Immediately | $ 6.47 |
