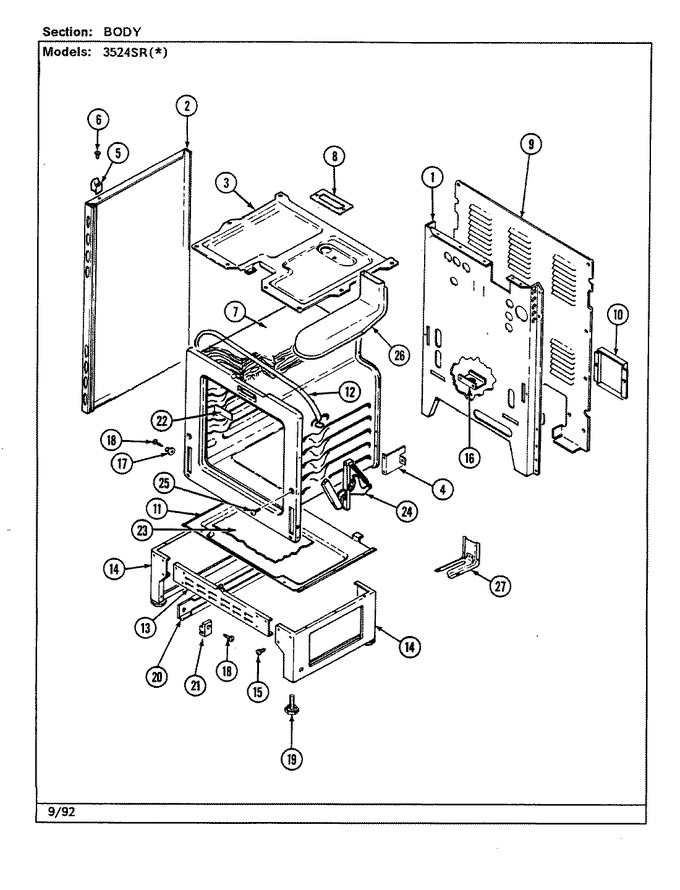

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F189-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F099-71 | Panel, Side (wht) | 17 |
|
- | ||||
| 2 | 2618F085-71 | Panel, Side (wht) | 01 |
|
- | ||||
| 3 | 4011F208-19 | Box, Burner | 01 |
|
- | ||||
| 4 | 3807F400-51 | Support,oven Rear | 01 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 7 | 4804F018-60 | Insulation, Wrap | 01 |
|
- | ||||
| 7 | 4804F017-60 | Insulation, Back | 01 |
|
- | ||||
| 8 | 4005F400-51 | Cover Flue Box | 01 |
|
- | ||||
| 9 | 4005F348-51 | Cover, Main Back Wire | 01 |
|
- | ||||
| 10 | 4005F376-51 | Cover, Terminal Block Acces | 01 |
|
- | ||||
| 11 | 3804F109-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 12 | 4820F001-59 | Strap, Retainer | 01 |
|
- | ||||
| 13 | 4020F001-80 | Pedestal, Front/rear | 01 |
|
- | ||||
| 14 | 4020W013-80 | Pedestal (sides) | 01 |
|
- | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 16 | 3605F174-51 | Plate, Conduit Tubing | 01 |
|
- | ||||
| 17 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 01 |
|
$ 7.07 | ||||
| 18 | W11772394 | Screw (Replaces: 7101P300-60) | 01 |
|
Immediately | $ 10.94 | |||
| 19 | 7101P306-60 | Leg, Leveling | 01 |
|
- | ||||
| 20 | 3406F028-51 | Runner, Drawer | 01 |
|
- | ||||
| 21 | 8004P033-60 | Support, Drawer | 01 |
|
- | ||||
| 22 | 8114P335-60 | Cover, Lock Slot | 01 |
|
- | ||||
| 23 | 8312P058-60 | Foil, Insulation Retainer | 01 |
|
- | ||||
| 24 | 7106P048-60 | Hinge, Door | 08 |
|
- | ||||
| 24 | 7106P032-60 | Hinge, Door | 01 |
|
- | ||||
| 25 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 26 | 4006W107-45 | Vent Box Assy. | 01 |
|
- | ||||
| 27 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 01 |
|
Immediately | $ 31.65 | |||
| 27 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 27 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 01 |
|
$ 26.33 |
