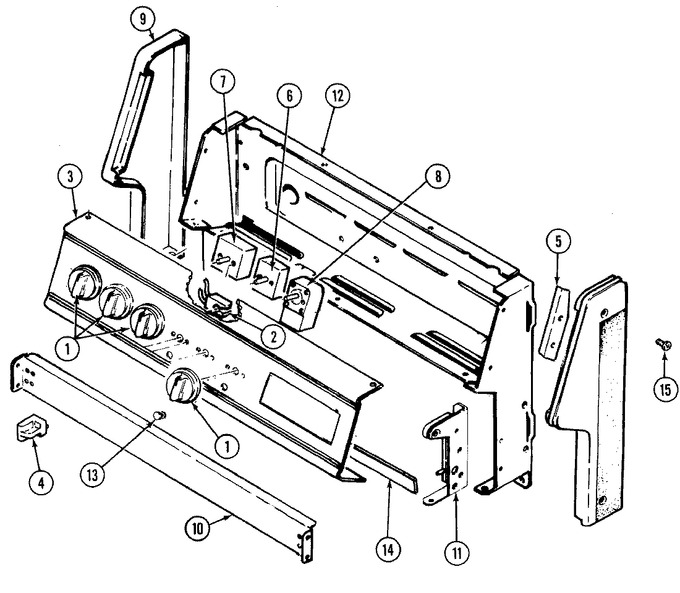

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7731P082-60 | Knob, Therm/burner (blk) | 01 |
|
- | ||||
| 2 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 2 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 16 |
|
$ 106.11 | ||||
| 3 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 3 | 4876S044-59 | Panel Assy. (blk) | 01 |
|
- | ||||
| 4 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 4 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 5 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 5 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 6 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 01 |
|
$ 131.41 | ||||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 8 | 7404P081-60 | Thermostat | 01 |
|
- | ||||
| 9 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 9 | 7726P052-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 9 | 7726P051-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 10 | 3802F088-51 | Brace, Control Panel | 01 |
|
- | ||||
| 11 | 3807F423-51 | Support, Housing (rt) | 01 |
|
- | ||||
| 11 | 3807F424-51 | Support, Housing (lt) | 01 |
|
- | ||||
| 12 | 4001F089-51 | Housing, Backguard | 01 |
|
- | ||||
| 13 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 13 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 16 |
|
$ 6.73 | ||||
| 14 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 14 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 15 | 5125A316-60 | Harness, Loose Wire | 01 |
|
- | ||||
| 15 | 5170D119-60 | Harness, Control Panel | 01 |
|
- | ||||
| 15 | 7101P137-60 | Screw, End Cap | 01 |
|
- | ||||
| 16 | 8112P052-60 | C & U Supplement For Solid Ele | 01 |
|
- | ||||
| 17 | 8113P023-60 | Manual, Use & Care | 01 |
|
- | ||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
