SELECT A DIAGRAM

01 - Front

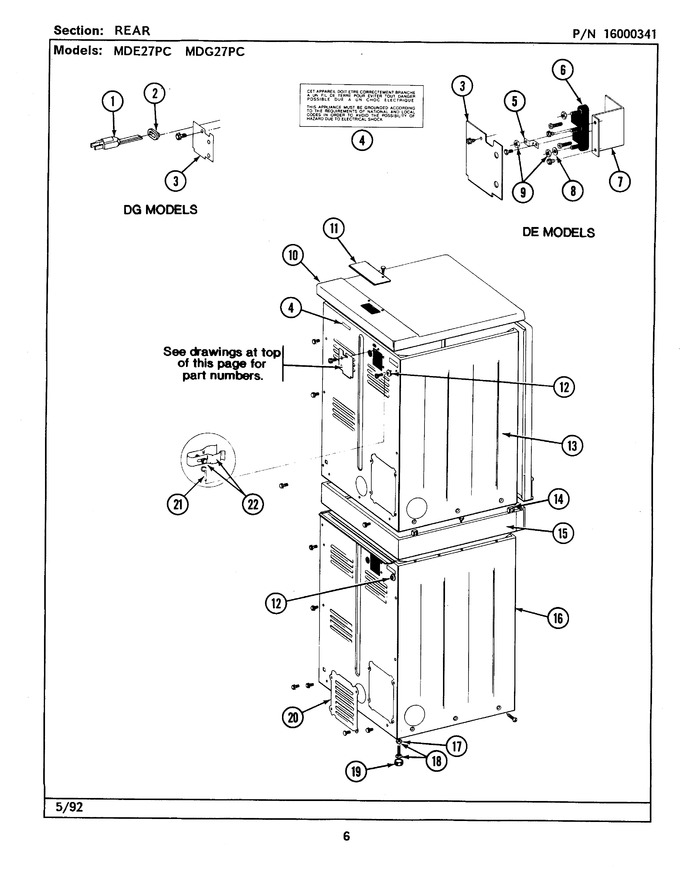

02 - Rear


03 - Top Cover


04 - Controls & Upper Dryer Front Panel


05 - Front Panel & Door Assembly


06 - Lint Screen, Tumbler (front & Back)


07 - Heater (a3 Series)


08 - Motor, Blower, Base Frame & Thermostats


09 - Heater (a0 Series)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	302521		Part Not Used	A0	Appelez-nous	-
002	211881		Part Not Used	A0	Appelez-nous	-
003	Y313561		Screw	A0			$ 5.27
003	Y312905		Terminal Cover	A0	Appelez-nous	-
004	214519		Electrical Instruction Label	A0	Appelez-nous	-
005	WP489483		Screw   (Replaces: Y311423)	A0			$ 9.78
005	Y312184		Grounding Strap	A0	Appelez-nous	-
006	400008		Terminal Block	A0			$ 29.20
006	W11164114		Screw   (Replaces: Y312209)	A0			$ 3.76
007	Y313561		Screw	A0			$ 5.27
007	Y312904		Terminal Bracket	A0	Appelez-nous	-
008	Y311270		Washer, Cup	A0			$ 8.75
009	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
010	307104		Top Cover Assy. (white)	A0	Appelez-nous	-
010	NLA		(almond)	A0	Appelez-nous	-
011	NLA		Top Cover Plate	A0	Appelez-nous	-
011	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
012	NLA		Screw & Washer Assy.	A0	Appelez-nous	-
013	213007		Screw	A0			$ 10.99
013	NLA		Cabinet, Upper (white)	A0	Appelez-nous	-
013	Y310632		Screw	A0	Appelez-nous	-
014	310933		Fastener, Coupling Collar	A0	Appelez-nous	-
015	NLA		Coupling Collar-white	A0	Appelez-nous	-
015	Y310632		Screw	A0	Appelez-nous	-
016	NLA		Cabinet, Lower (white)	A0	Appelez-nous	-
017	WP210385		Lock Nut For Adjustable Leg   (Replaces: 210385)	A0			$ 6.26
018	22003428		Adjustable Leg & Nut   (Replaces: Y302699)	A0		Immediately	$ 14.41
019	WP210684		Rubber Foot For Leg   (Replaces: 210684)	A0		Immediately	$ 14.09
020	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
020	Y313561		Screw	A0			$ 5.27
020	Y312951		Access Cover, Back	A0	Appelez-nous	-
021	311155		Ground Wire	A0			$ 8.77
022	301548		Ground Clamp	A0	Appelez-nous	-
