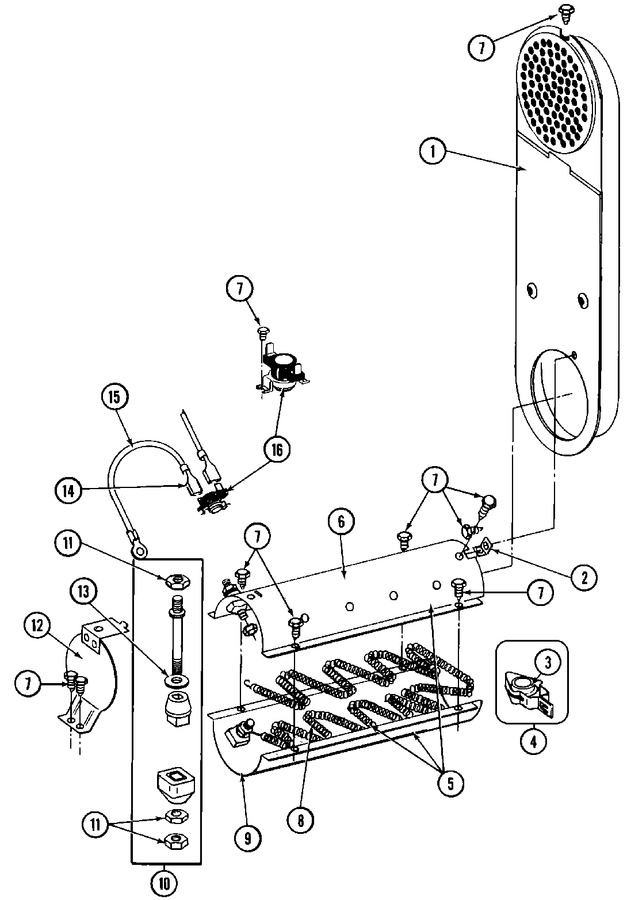

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Inlet Duct Assy.	A0	Appelez-nous	-
002	Y312890		Retainer, Heater Chamber	A0	Appelez-nous	-
003	Y313270		Insulator For Heater Elemen	A0			$ 5.85
004	WPY303881		Clip And Insulator Assembly   (Replaces: Y303881)	A0		Immediately	$ 19.79
005	Y303778		Heater Assembly Complete	A0			$ 199.36
006	Y313575		Heater Chamber, Top	A0	Appelez-nous	-
007	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
008	Y313537		Heater Element 240 Volt	A0	Appelez-nous	-
009	Y313576		Heater Chamber, Bottom	A0	Appelez-nous	-
010	Y304596		Terminal Insulator Assembly	A0		Immediately	$ 22.97
011	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
012	304124		Heater Shield	A0	Appelez-nous	-
013	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	A0			$ 7.25
014	210745		Wire Terminal	A0	Appelez-nous	-
015	WPY304693		Jumper Wire   (Replaces: Y304693)	A0		Immediately	$ 6.47
016	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)	A0		Immediately	$ 66.12
