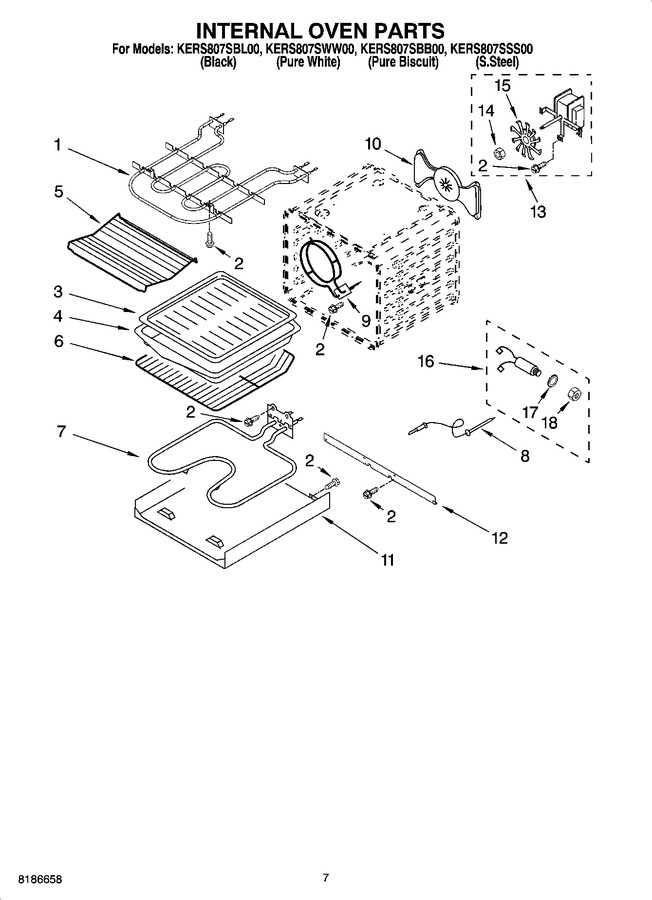

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 8301514) |
|
Immediately | $ 206.10 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | WP3195996 | Grill, Broiler (Replaces: 4457277) |
|
$ 82.63 | |||||
| 4 | WP3196076 | Pan, Broiler (Replaces: 4457276) |
|
$ 279.38 | |||||
| 5 | 3181534 | Rack, Roasting |
|
- | |||||
| 6 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 107.65 | ||||
| 7 | 4451175 | Element, Bake (Replaces: 4452155) |
|
Immediately | $ 126.84 | ||||
| 8 | WP9755542 | Probe, Meat (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 9 | WP9760769 | Element, Convection (Replaces: 4452157) |
|
Immediately | $ 289.61 | ||||
| 10 | W10860133 | Cover, Fan (Replaces: 9756690) |
|
$ 219.39 | |||||
| 11 | 4455037 | Tray, Hidden Bake |
|
$ 73.11 | |||||
| 12 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 13 | 4451583 | Motor Convection |
|
$ 140.53 | |||||
| 14 | 4452227 | Nut |
|
$ 33.98 | |||||
| 15 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 16 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
Immediately | $ 97.22 | ||||
| 17 | WP9755547 | Lockwasher (Replaces: 9755547) |
|
$ 5.49 | |||||
| 18 | WP9755546 | Nut, Hex (Replaces: 9755546) |
|
$ 6.26 |
