01 - Cooktop Parts
02 - Control Panel Parts
03 - Oven Parts
04 - Door And Drawer Parts
05 - Internal Oven Parts

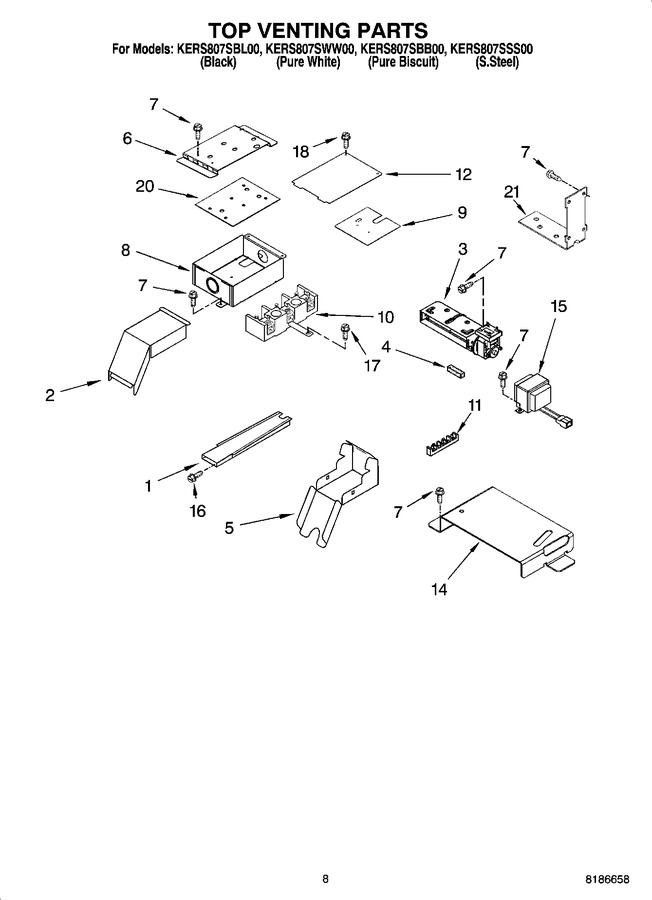

06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 90.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 13.30 | |||||
| 3 | W10810687 | Blower (45mm) (Replaces: 9759320) |
|
Immediately | $ 309.01 | ||||
| 4 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 6.98 | ||||
| 5 | 4455177 | Elbow, Vent- Bottom |
|
$ 9.77 | |||||
| 6 | 9759938 | Bracket, Term.box |
|
- | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 8 | W10115858 | Box, Terminal (Replaces: 9757404) |
|
$ 104.57 | |||||
| 9 | 9759721 | Insulator, Termianl Box |
|
- | |||||
| 10 | WP9761958 | Block, Terminal (Replaces: 9761958) |
|
Immediately | $ 39.72 | ||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 12 | 9757405 | Cover, Term Box |
|
$ 43.66 | |||||
| 14 | 9757829 | Bracket, Transfrmr |
|
- | |||||
| 15 | WPW10111628 | Transformer (Replaces: 9760212) |
|
$ 254.91 | |||||
| 16 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 17 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 18 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 20 | 9759884 | Insulation |
|
- | |||||
| 21 | WP4455352 | Bracket, Blower (Replaces: 4455352) |
|
$ 32.15 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 9763481 | Harness, Ground Strap |
|
$ 78.41 | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 4448664 | Clamp |
|
$ 18.35 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 814381 | Hinge Pin Kit |
|
$ 7.73 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 6.80 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| W11447673 | Anti-tip Assembly (Replaces: 9782676) |
|
Immediately | $ 28.64 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 9759715 | Conduit |
|
- | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| W10118728 | Harness, Wire (main) (Replaces: 9761567) |
|
$ 279.25 | ||||||
| 9762909 | Harness, Wire (switch, Elec) |
|
- | ||||||
| 9762921 | Harness, Wire |
|
$ 126.17 | ||||||
| W10109280 | Harness, Cktp (elec. Sw.) |
|
- | ||||||
| W11209404 | Harness, Wire (connector Cable) (Replaces: 9762426) |
|
$ 102.00 |
