01 - Cooktop, Literature

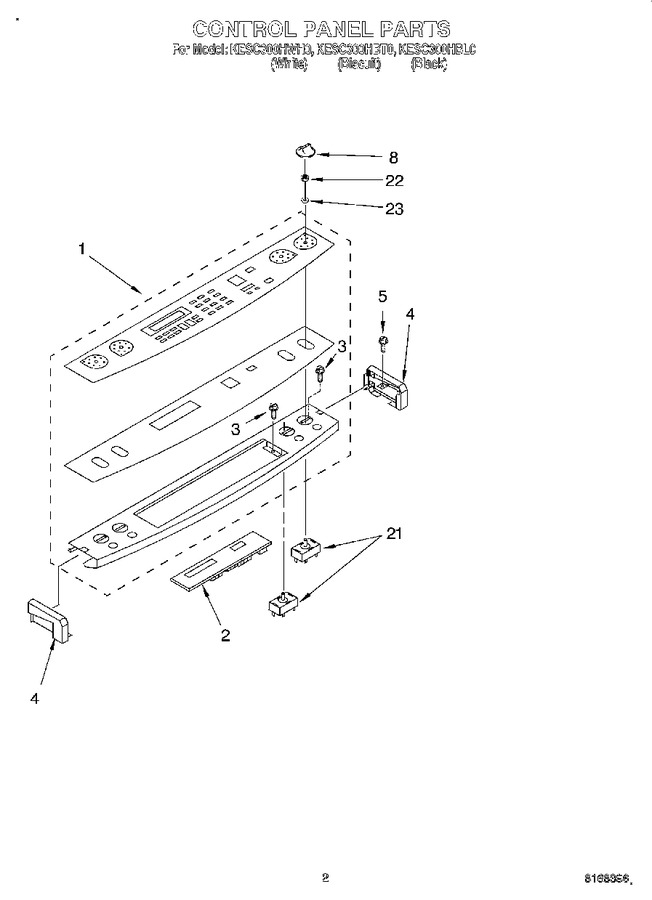

02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9753895CB | Console, Glass (assembly) (black) |
|
- | |||||
| 1 | 9753895CC | Console, Glass (assembly) (biscuit) |
|
- | |||||
| 1 | 9753895CW | Console, Glass (assembly) (white) |
|
- | |||||
| 2 | 3191107 | Timer, Electronic |
|
- | |||||
| 3 | 9780271 | Screw, 8-18 X 1/4`` |
|
- | |||||
| 4 | 9751039FB | End Cap (black, Lh) |
|
- | |||||
| 4 | 9751040FW | End Cap (right Hand) (white) |
|
- | |||||
| 4 | 9751040FC | End Cap (right Hand) (biscuit) |
|
- | |||||
| 4 | 9751040FB | End Cap (black, Rh) |
|
- | |||||
| 4 | 9751039FW | End Cap (white, Lh) |
|
- | |||||
| 4 | 9751039FC | End Cap (biscuit, Lh) |
|
- | |||||
| 5 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 8 | 9751871 | Knobs, Control (4) (screw (2) No.10 Type B 1``) |
|
- | |||||
| 8 | 9750372F | Knob, Control (4) (black) |
|
- | |||||
| 21 | 8203536 | Switch, Infinite (1000-2400w, Lf) (Replaces: 9751758) |
|
Immediately | $ 183.74 | ||||
| 21 | 9751364 | Switch, Infinite (1500w, Lr) |
|
$ 72.83 | |||||
| 21 | 9751362 | Switch, Infinite (2500w - Rr) |
|
$ 72.53 | |||||
| 21 | 9751363 | Switch, Infinite (1800w, Rf) |
|
$ 71.70 | |||||
| 22 | 9751711 | Nut, Mounting (dual Element) |
|
- | |||||
| 22 | 00422610 | Nut, Mounting (single Element) (Replaces: 422617) |
|
$ 139.96 | |||||
| 23 | 9781455 | Seal, Switch (4) |
|
- |
