SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Optional

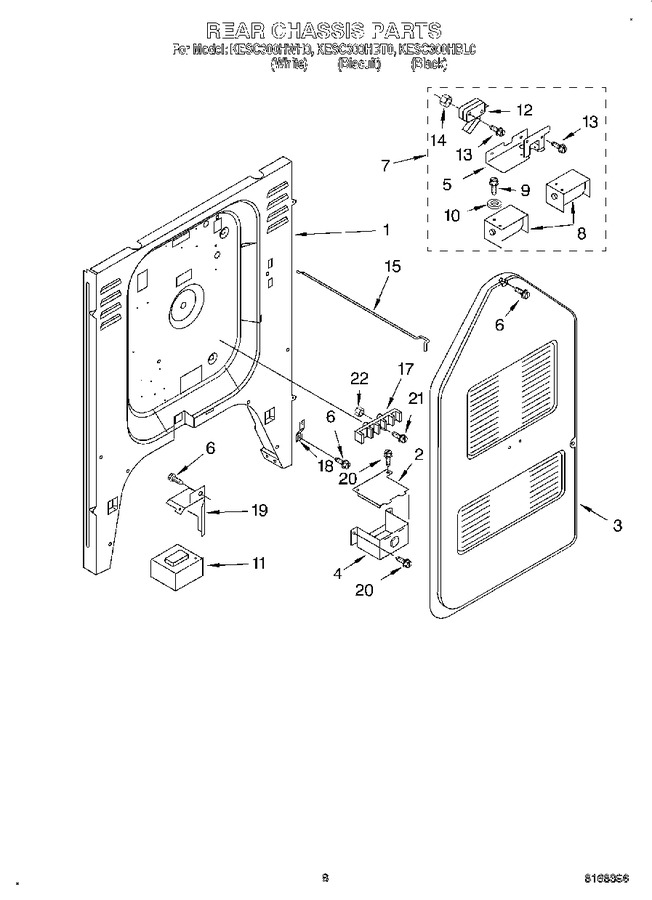

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751051		Rear, Chassis		Appelez-nous	-
2	9752345		Cover, Terminal Box		Appelez-nous	-
3	9751353		Panel, Rear Cover		Appelez-nous	-
4	9752344		Box, Terminal		Appelez-nous	-
5	9751418		Bracket, Lock		Appelez-nous	-
6	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
7	9751439		Oven Lock Assembly		Appelez-nous	-
8	9751590		Solenoid		Appelez-nous	-
9	422222		Screw,10-32 X 5/16		Appelez-nous	-
10	424238		Washer, Lock No.10		Appelez-nous	-
11	9753413		Block, Balance		Appelez-nous	-
12	9751763		Switch, Interlock		Appelez-nous	-
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
18	313660		Clip		Appelez-nous	-
18	3169573		Strap, Ground		Appelez-nous	-
19	9751798		Vent, Back		Appelez-nous	-
20	9780272		Screw, 10-16 X 1/2		Appelez-nous	-
21	98884		Screw, 10-16 X 1		Appelez-nous	-
22	9751868		Grommet, Harness		Appelez-nous	-
22	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
22	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
22	9752380		Harness, Wire (oven Light)		Appelez-nous	-
22	9781842		Harness, Wire (cooktop)		Appelez-nous	-
22	9781767		Harness, Wire (control, Ceran)		Appelez-nous	-
22	9750376		Harness, Wire (door Switch)		Appelez-nous	-
22	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
22	WPW10339879		Tie, Wire   (Replaces: 20082084)				$ 7.11
22	WA906B		Scraper   (Replaces: 3183488)			Immediately	$ 4.86
22	WP112432		Nut, Hex No.10-32   (Replaces: 112432)				$ 7.16
22	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
22	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
22	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
22	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
22	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
22	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
22	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
22	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
22	242831		Wire (14 Ga. 200 C Red)				$ 342.23
22	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
22	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
22	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
22	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
22	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
22	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
22	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
22	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
22	4392899		Biscuit			Immediately	$ 23.81
22	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
22	261888		New Avocado		Appelez-nous	-
22	261886		Coffee		Appelez-nous	-
22	261890		Harvest Gold		Appelez-nous	-
22	285365		Toast		Appelez-nous	-
22	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
22	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
22	350942		Primer (white)   (Replaces: 206922)				$ 80.69
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
22	978883		Almond (uncut)		Appelez-nous	-
22	261891		Harvest Gold (uncut)		Appelez-nous	-
22	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
22	285368		Platinum (uncut)		Appelez-nous	-
22	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
22	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
22	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
22	9750222		Insulation, Wrap		Appelez-nous	-
22	9750221		Insulation, Rear		Appelez-nous	-
22	CERAMABRYTE		Glass Cleaner   (Replaces: 9780196)			Immediately	$ 9.95
22	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
22	261582		Grease		Appelez-nous	-
22	9751745		Anti-tip Kit				$ 19.35
22	9752954		Harness, Wire (si/main/nc)		Appelez-nous	-
22	9781655		Harness, Wire (l2 Electric)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
