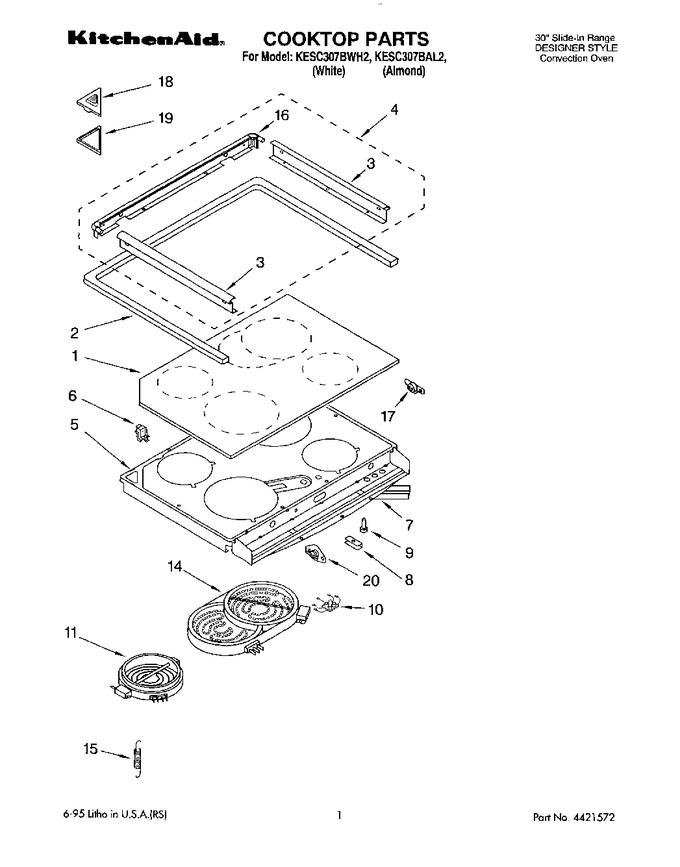

01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Wiring Harness
07 - Rear Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751752 | Cooktop, Ceran (white) |
|
- | |||||
| 1 | 9751753 | Cooktop, Ceran (almond) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (front & Sides) (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9751440PW | Trim, Side (white) |
|
- | |||||
| 3 | 9751440PT | Trim, Side (almond) |
|
- | |||||
| 4 | 4421430 | Frame, Cooktop (white) |
|
- | |||||
| 4 | 4421431 | Frame, Cooktop (almond) |
|
- | |||||
| 5 | 9751319 | Support, Element |
|
- | |||||
| 6 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9752003 | Washer (2) |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 7 | 422404 | Brace, Support |
|
- | |||||
| 7 | WP3387230 | Screw (2) 10 X 3/4`` (Replaces: 9780273) |
|
Immediately | $ 7.69 | ||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 8 | 9751871 | Screw, (4) 10 X 3/4 |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (white (4)) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 9 | 238614 | Bumper, Rubber (black (4)) (Replaces: 9780771) |
|
$ 72.68 | |||||
| 10 | 9752072 | Hot Light |
|
- | |||||
| 11 | 9751529 | Element, Surface (180 Mm - Rf) |
|
- | |||||
| 11 | 9751527 | Element, Surface (230 Mm - Lf) |
|
- | |||||
| 11 | 9751528 | Element, Surface (160 Mm - Lr) |
|
- | |||||
| 14 | 9751530 | Dual Element, Rr |
|
- | |||||
| 15 | 9781211 | Spring |
|
- | |||||
| 16 | 9752045PT | Trim, Back (includes End Caps) (almond) |
|
- | |||||
| 16 | 9752045PW | Trim, Back (includes End Caps) (white) |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 17 | 9780265 | Screw (2) |
|
- | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent |
|
- | |||||
| 20 | WP9759944 | Bimetal, Fan (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| LIT9751685 | Use And Care Guide |
|
- | ||||||
| LIT9752043 | Installation Instructions |
|
- | ||||||
| LIT4317161 | Service Manual |
|
- | ||||||
| LIT9751599 | Quick Set (oven) |
|
- | ||||||
| LIT9752014 | Wiring Diagram |
|
- | ||||||
| LIT9751598 | Tech Sheet-k/a |
|
- | ||||||
| LIT3150693 | Cookbook, T/c Ovens |
|
- |
