01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Wiring Harness
07 - Rear Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

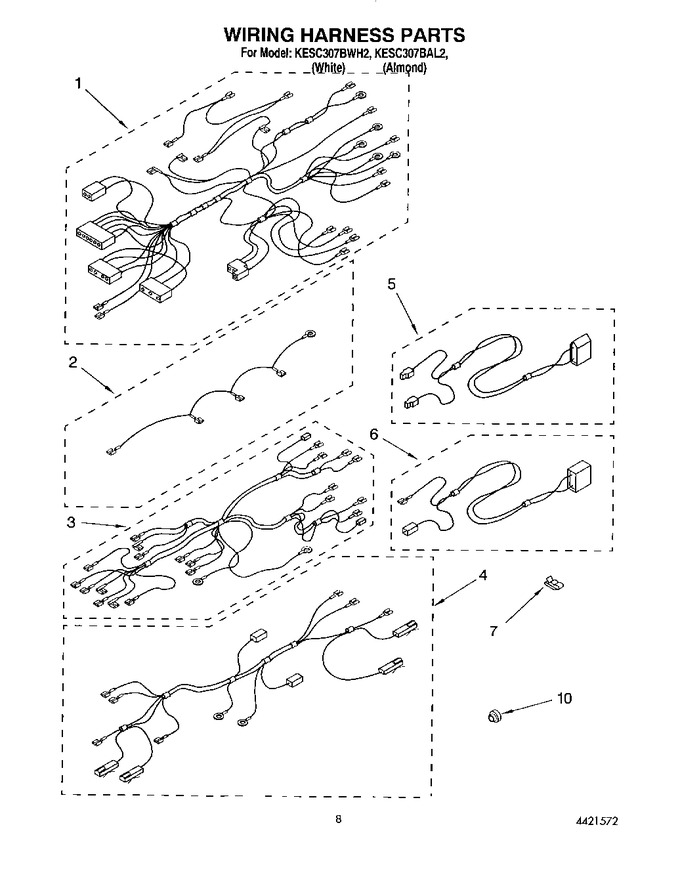

| 1 | 9752074 | Harness, Wire (oven) |
|
- | |||||
| 2 | 9751839 | Harness, Wire (l-2, 4 Wire) |
|
- | |||||
| 2 | 9751837 | Harness, Wire (l-2, 5 Wire) |
|
- | |||||
| 3 | 9751519 | Harness, Wire (cooktop) |
|
- | |||||
| 4 | 9752036 | Harness, Wire (ceran) |
|
- | |||||
| 5 | 9750376 | Harness, Wire (door) |
|
- | |||||
| 6 | 9752088 | Harness, Wire (probe) |
|
- | |||||
| 7 | 3400964 | Harness Clip (Replaces: 422667) |
|
$ 76.28 | |||||
| 10 | 9751868 | Grommet, Harness |
|
- |
