Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9782419CB Console, Glass Special Order $ 305.35

2 9782455 Board, Display Special Order $ 483.74

3 9780271 Screw, 8-18 X 1/4`` Appelez-nous -
4 9751039FB End Cap (left Hand) Appelez-nous -
4 9751040FB End Cap (right Hand) Appelez-nous -
7 9780265 Screw, 10-16 X 3/8 Appelez-nous -
8 WP9750372FF Knobs, Control   (Replaces: 9750372FF) In-Stock Immediately $ 18.86

10 9782437 Board, Power Special Order $ 251.61

11 9755021 Shield, Control Panel Appelez-nous -
21 9751364 Switch, Infinite (1500w, Lr) Special Order $ 72.83

21 9751363 Switch, Infinite (1800w, Rf) Special Order $ 71.70

21 9751362 Switch, Infinite (2200w, Rr) Special Order $ 72.53

21 WP9755175 Switch, Infinite (1000-2400w, Lf)   (Replaces: 9755175) Special Order $ 118.76

22 3400958 Nut, Mounting Appelez-nous -
23 9781455 Seal, Switch (4) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

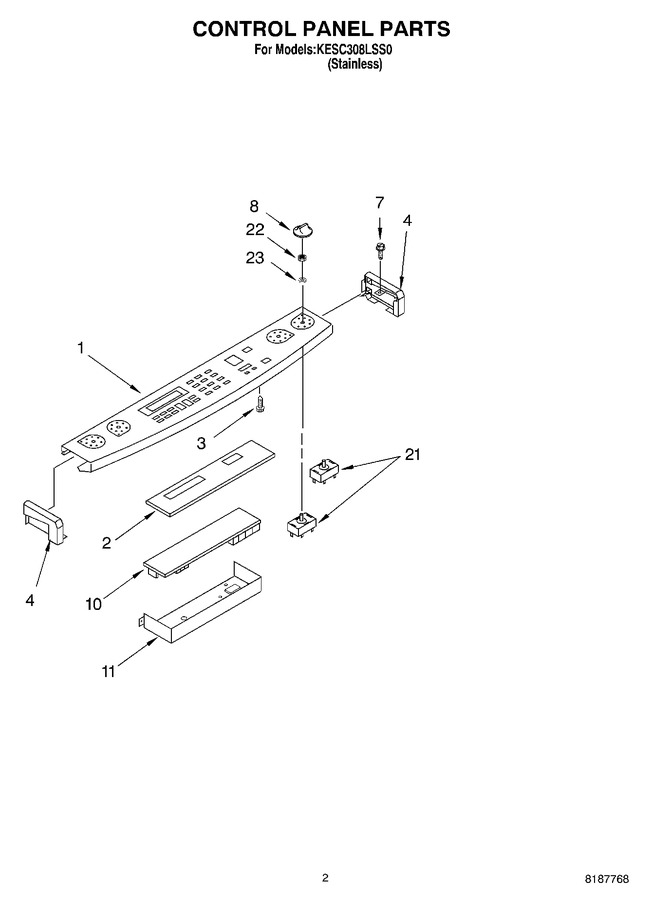

Diagram for KESC308LSS0
