SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts


06 - Rear Chassis Parts


07 - Hidden Bake Parts, Miscellaneous Parts

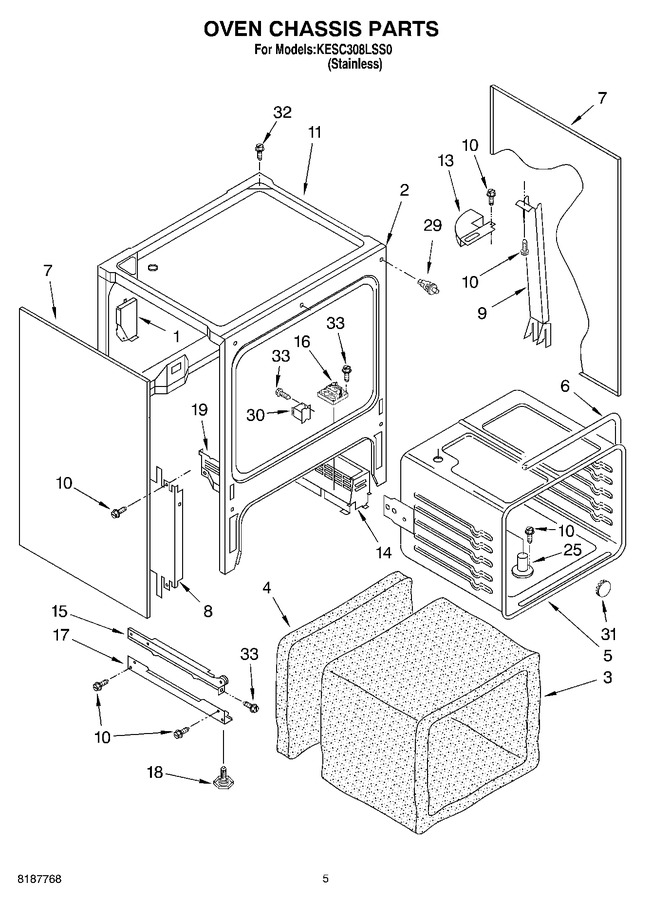

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751350		Vent Box, Oven		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9754003		Insulation, Wrap		Appelez-nous	-
4	9754011		Insulation, Rear		Appelez-nous	-
5	9753744GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PB		Oven, Side L Or R		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Fan Duct, Side		Appelez-nous	-
10	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
11	9752637		Burner Box		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Hinge, Receiver		Appelez-nous	-
25	9782380		Vent Tube		Appelez-nous	-
29	9755192		Door Switch				$ 113.77
30	9755194		Relay				$ 66.85
31	9780578		Button, Plug		Appelez-nous	-
32	9780275		Screw, 8-18 X 3/8		Appelez-nous	-
33	9751808		Screw, 8-18 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
